Winch Alpha 4.3 tons Quick Compact
Tax included. Shipping calculated at checkout
The horntools Alpha Quick Compact winch was specially developed for users who have little space available. Despite its compact design, the winch has a pulling force of 4.3 tons.
The special thing about the Quick models of the Alpha series is the extremely high maximum pulling speed of 15 m/min (measured without load). This allows you to pull your loads or other items out of the mud or onto the loading area even faster.
It is ideal for use in trailer construction, as a hunting winch, as a rear winch or on tow vehicles with glasses. Please note that you need the appropriate carrier or mounting kit for installation.

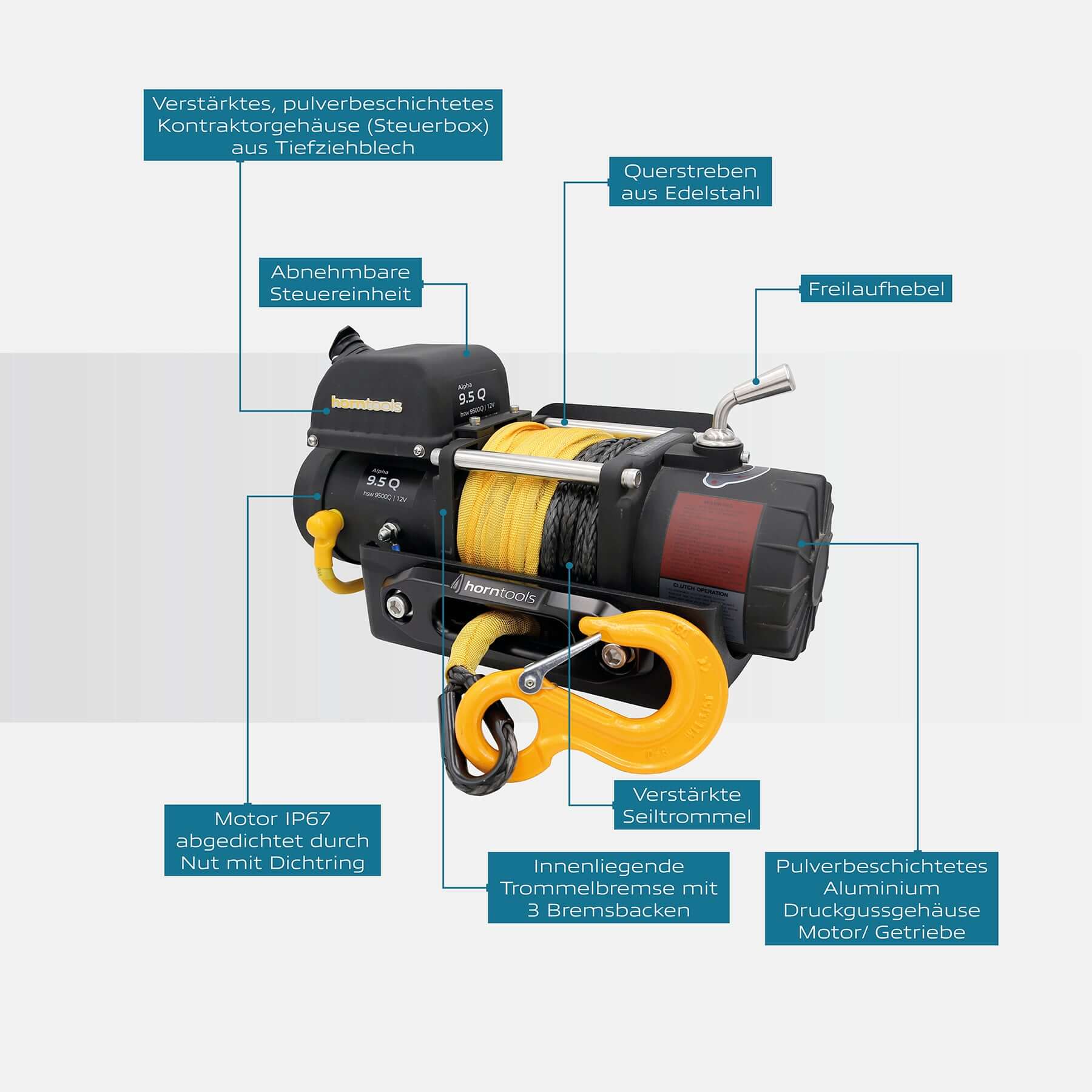

Characteristics:
- Motor IP67 sealed by groove with sealing ring
- Freewheel lever
- Stainless steel crossbars
- Reinforced rope drum
- Powder-coated aluminum die-cast housing motor/gearbox
- Internal drum brake with 3 brake shoes
- Removable control unit (so that the control can be installed anywhere)
- Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal
Technical details:
- Gearbox: 3-stage planetary gearbox
- Max. pulling force: 4300 kg

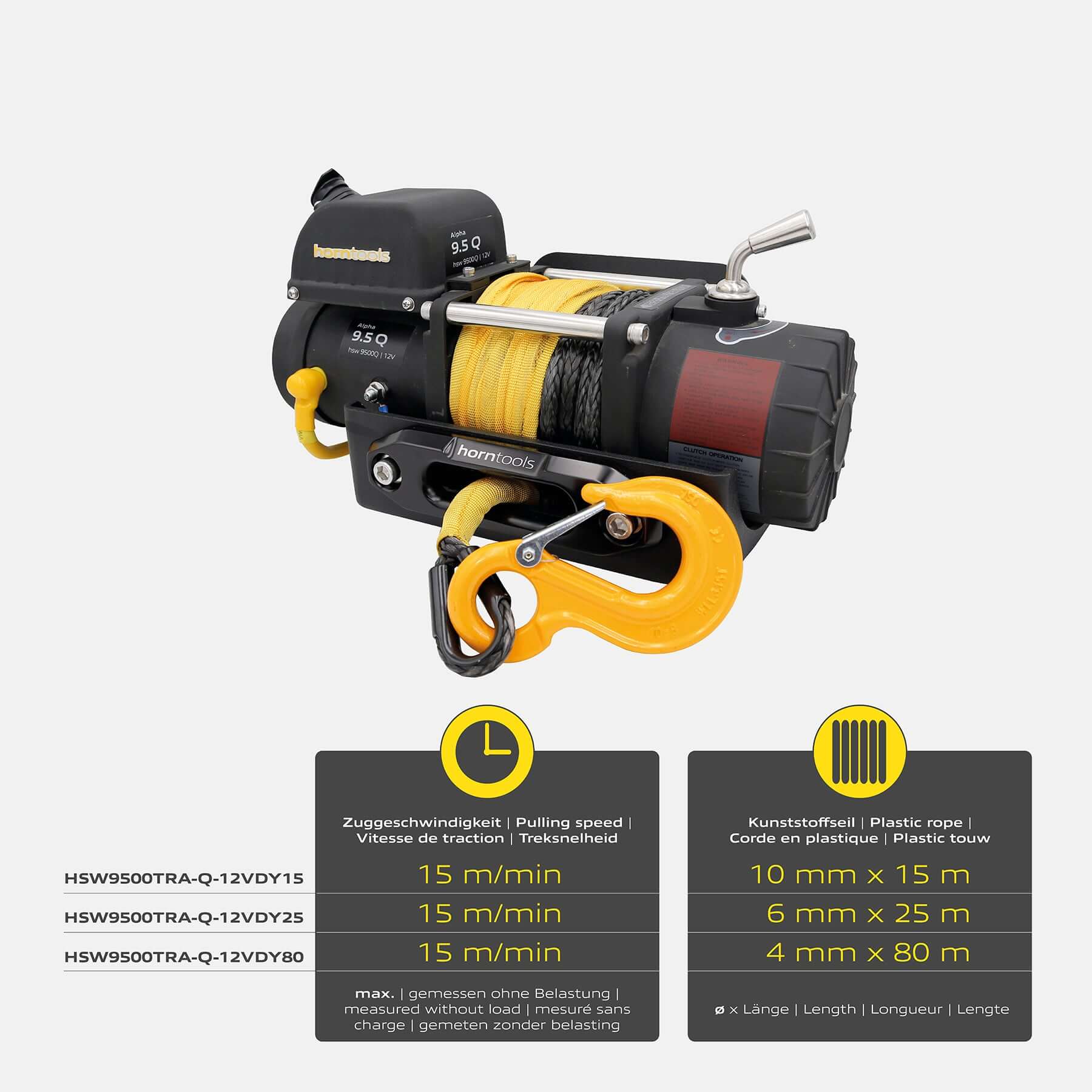

- Max. pulling speed: 15 m/min*
- Weight: 25 kg
- Engine type: Series Wound**
- Gear ratio: 110:1
- Max. power consumption: 530 amps
- Voltage: 12 volts / 24 volts
- Rope (∅ x length) 4 mm x 80 m
- Drum (∅ x length): 63 x 120 mm

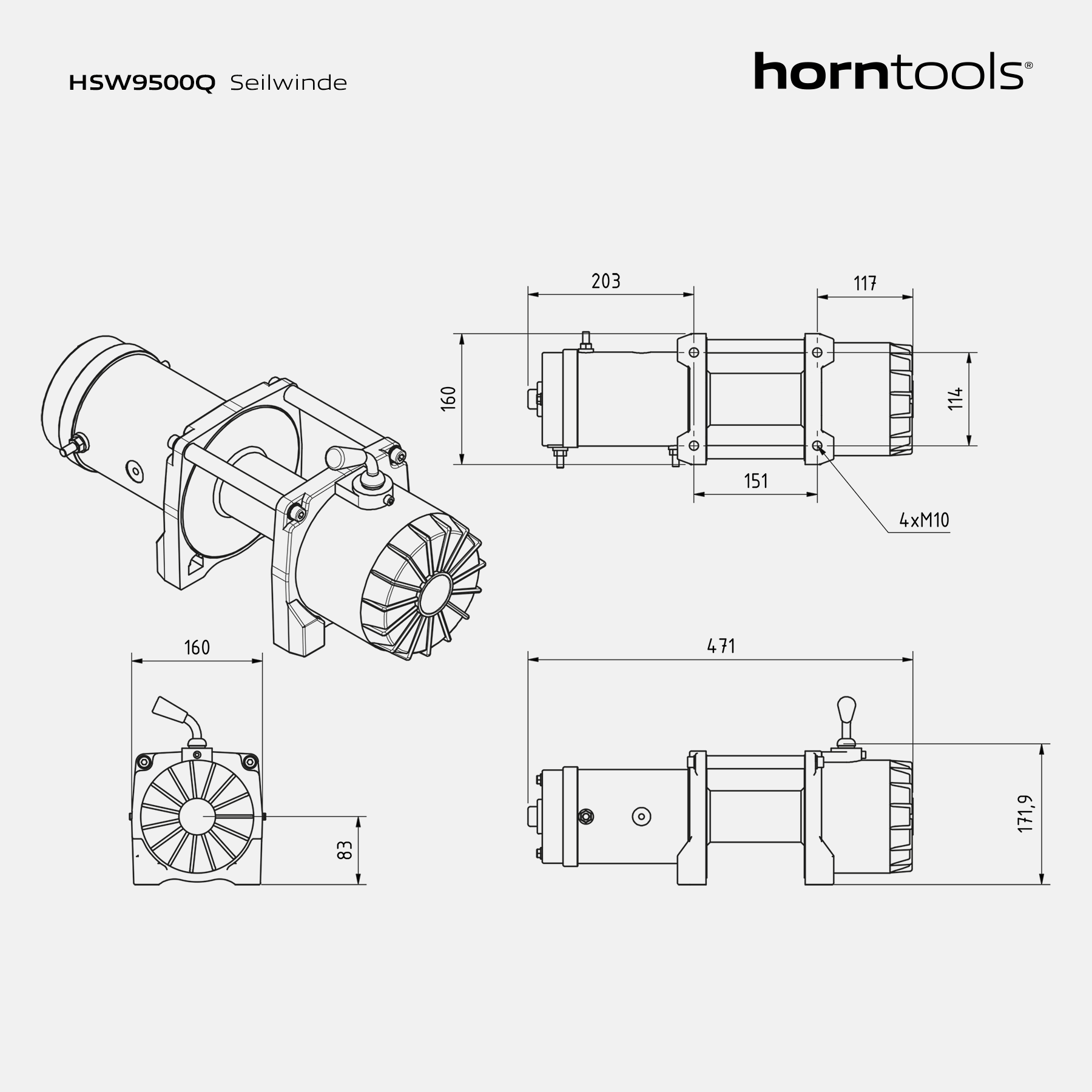

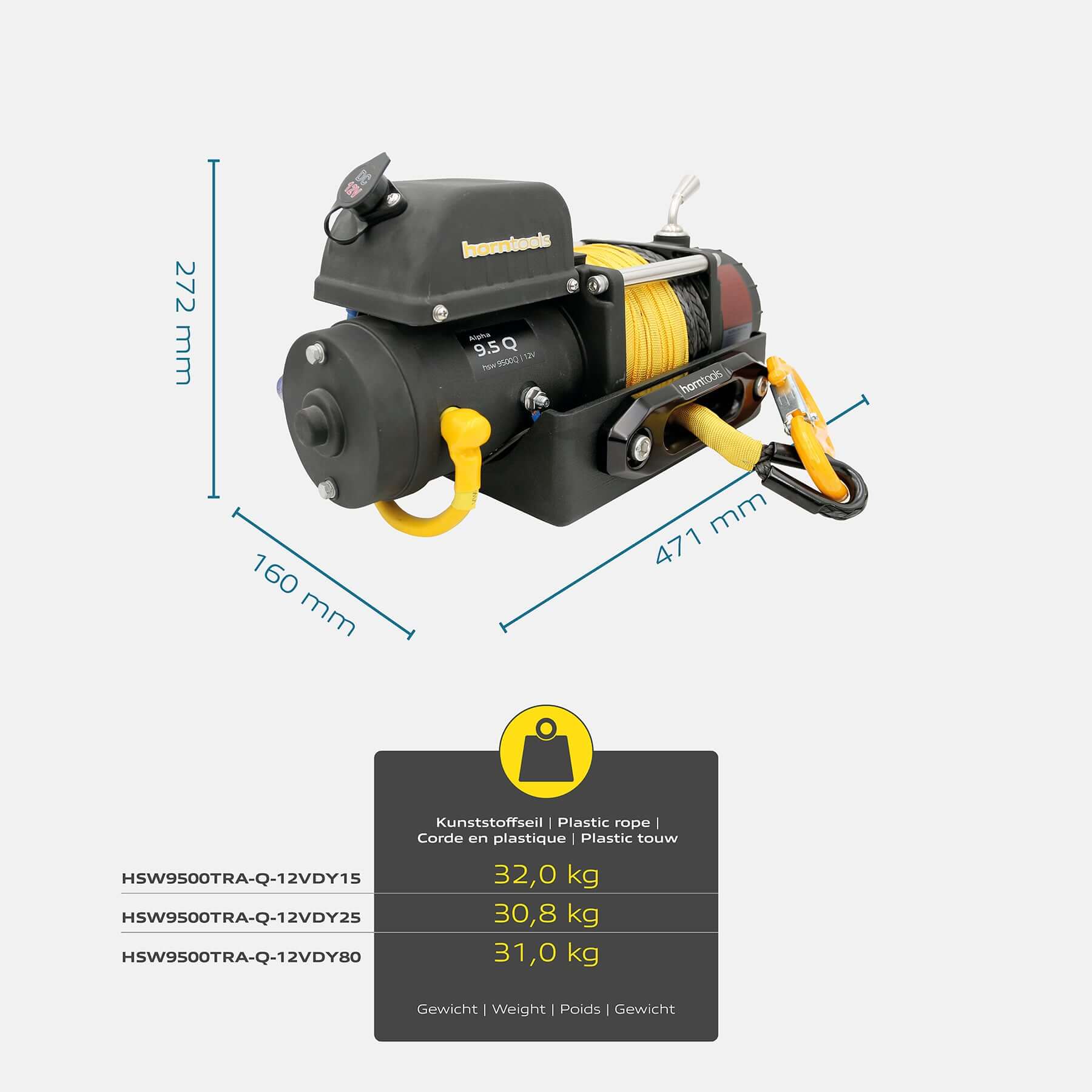

- Overall size (L x W x H): 471 x 160 x 272 mm
- Cable cross section: 50 mm²
- Cable length: 180 cm
*measured without load
**Magnetic field is generated electrically
Scope of delivery:
- Winch
- Aluminum cable window
- Fastening screws
- Synthetic rope with hooks
- Cable remote control
- Radio remote control
- Operation manual
Danger:
Please note that our winches may only be used for ground traction and are not suitable for lifting!
The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!
Guarantee:
We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.
A notice:
You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer. This winch can produce a higher level of noise.
