Winch Rings

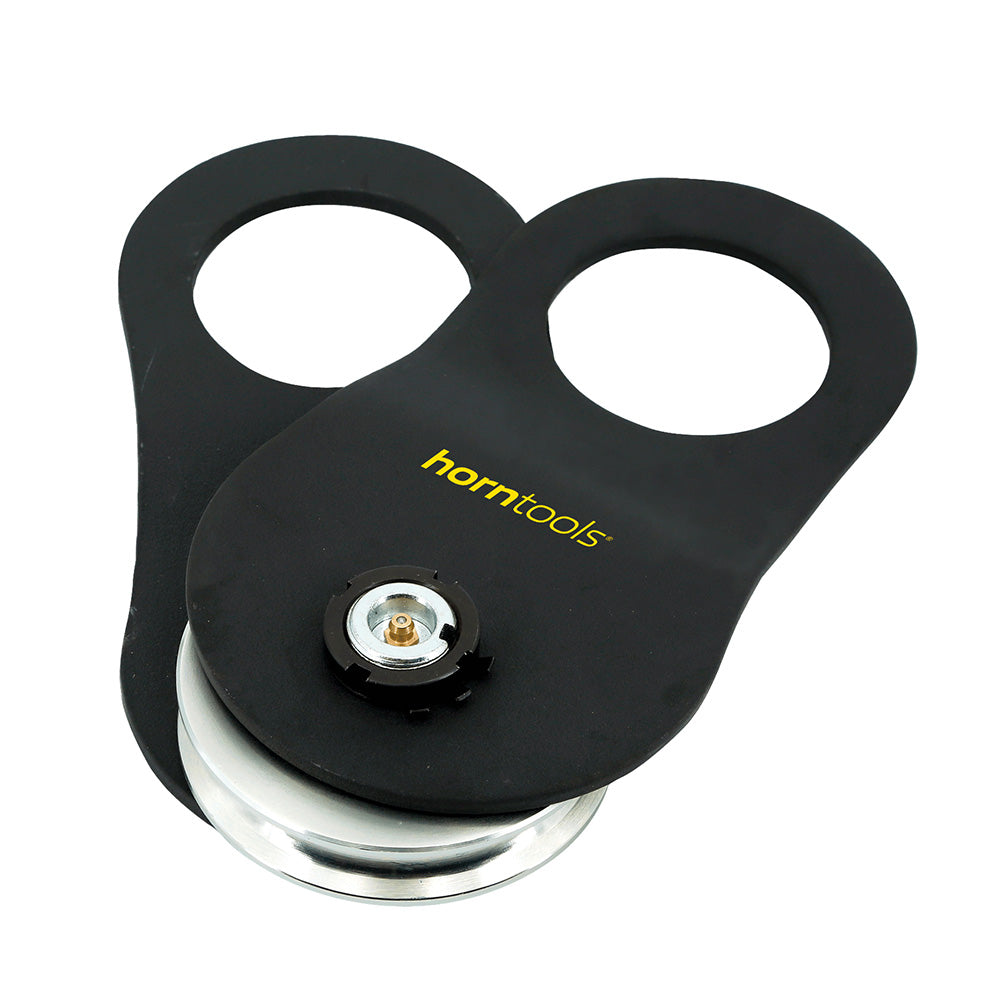

A pulley is used in a cable winch used toTo increase the traction of these and the to change the direction of the rope. In this video we will show you the various applications of the pulley in practice. With the help of a pulley, the effective pulling force doubled because it acts as a mechanical lever. This allows heavier loads with less effort in addition, the pulley plays an important role in the rope pull by guiding the rope around obstacles and flexibly adjusting the pulling direction. This is particularly useful in self-recovery of vehicles, where a pulley is used to pull your car to extricate yourself from tricky situations using a cable winch. The pulley is generally used with an electric cable winch (in forestry) or for recovering cars, SUVs, or off-road vehicles for towing or self-recovery.

Selecting the right pulley depends on the type of winch and the specific application. Pulleys are available in various sizes and load capacities and, depending on the model, are suitable for wire ropes, steel ropes, and/or synthetic ropes. The following criteria are important:

1. Load capacity: Make sure that the pulley for the maximum pulling force of your cable winch to avoid breakages and dangerous situations.
2. Size and weight: The dimension of the pulley should be Diameter of the rope pulley that's too small can damage the rope, while a pulley that's too large can be unnecessarily heavy.
3. Material: Pulleys are made of different materials such as steel, aluminum, or plastic. Steel rollers are particularly robust and durable, aluminum rollers are lighter and corrosion-resistant, while plastic rollers are the lightest but offer less load-bearing capacity than metal rollers.

To use a pulley, follow these steps:

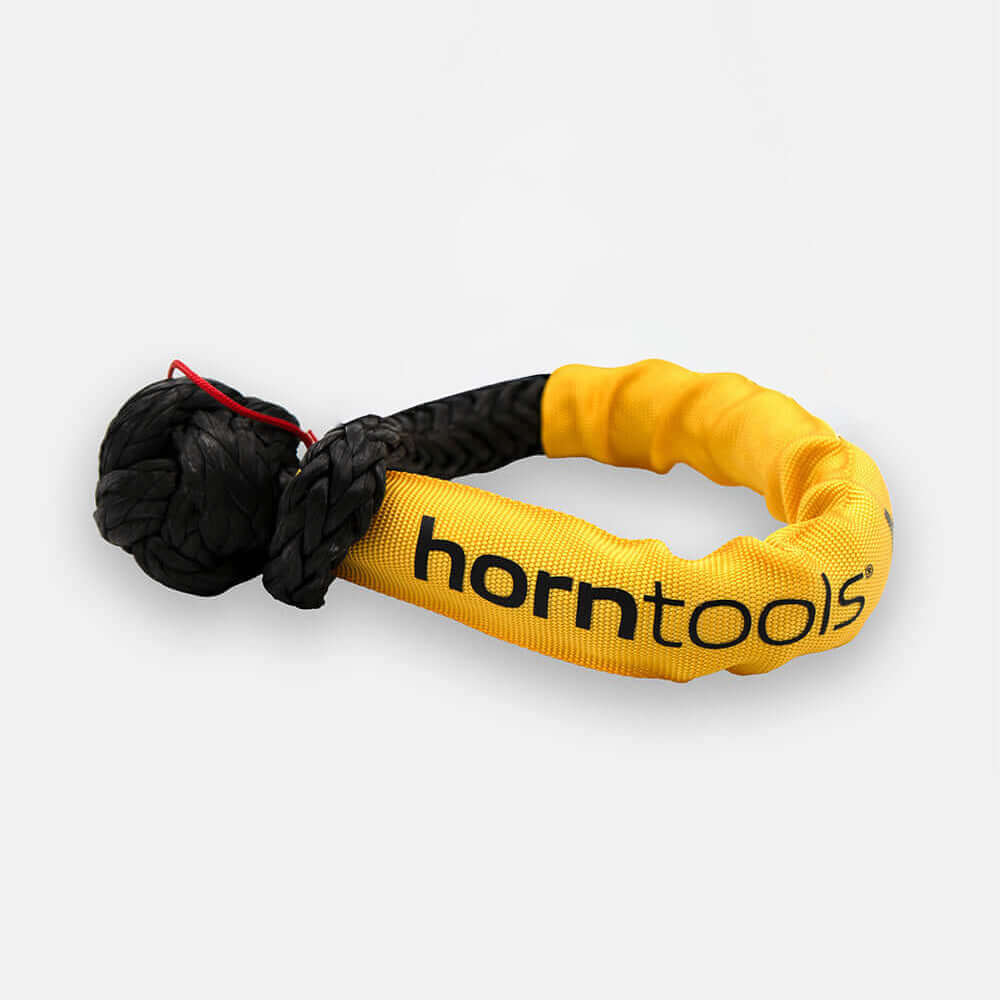

1. Preparation: Secure the pulley to a stable attachment point that can bear the load. Use a suitable Soft shackle or a comparable connection.
2. Inserting the rope: Thread the rope through the pulley to effectively change the direction of pull. Make sure the rope is threaded correctly to avoid friction and damage.
3. Application:Operate the winch to move the load. The pulley distributes the pulling force, allowing you to move heavier loads with less effort.

⚠️ Before each use, check the pulley or soft shackle for visible cracks, signs of wear and, if necessary, its mobility.

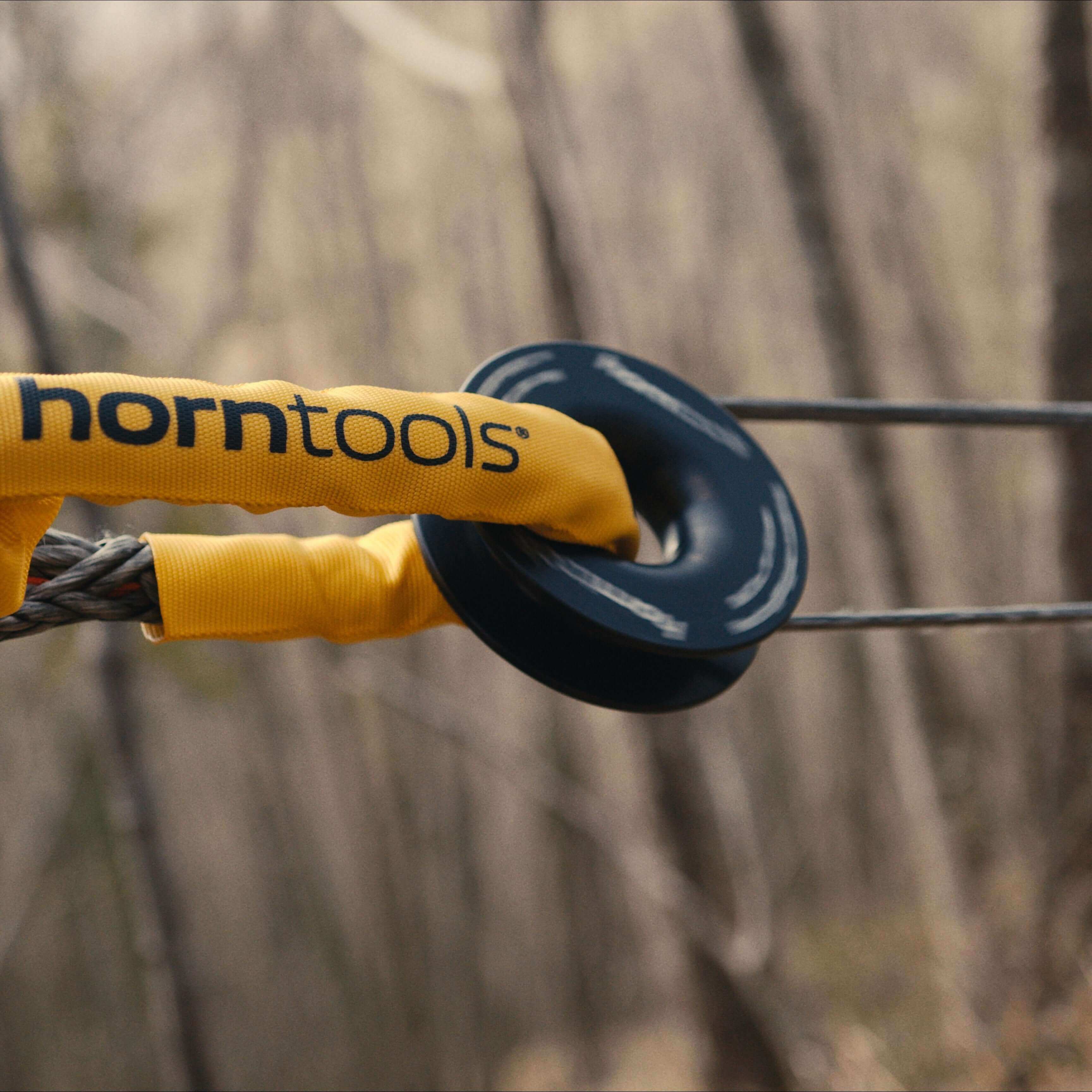

A pulley is typically secured with a suitable attachment point that can safely absorb the tensile forces. It is important to use a soft shackle or similar secure connection to attach the pulley, either to the anchor point or directly to the load. This method minimizes the risk of rope damage and ensures safe and effective use of the pulley.

With the pulley you have to consider breaking and working load. The breaking load of a pulley indicates which maximum load it can withstand before it breaks or fails. A pulley with a breaking load of 9 tons can hold loads of up to 9,000 kilograms.

However, the recommended payload is lower than the breaking load.The working load limit (WLL) takes into account a safety factor, which is typically between 4:1 and 5:1. Therefore, a pulley with a breaking load of 9 tons typically has a working load limit of approximately 1.8 to 2.25 tons, depending on the safety factor applied.

How strong the pulley needs to be depends entirely on the specific application and the maximum pulling force of the cable winch. It is crucial that the pulley supports both the breaking load as well as the recommended working load limit (WLL) can safely support to ensure reliable and safe use.
