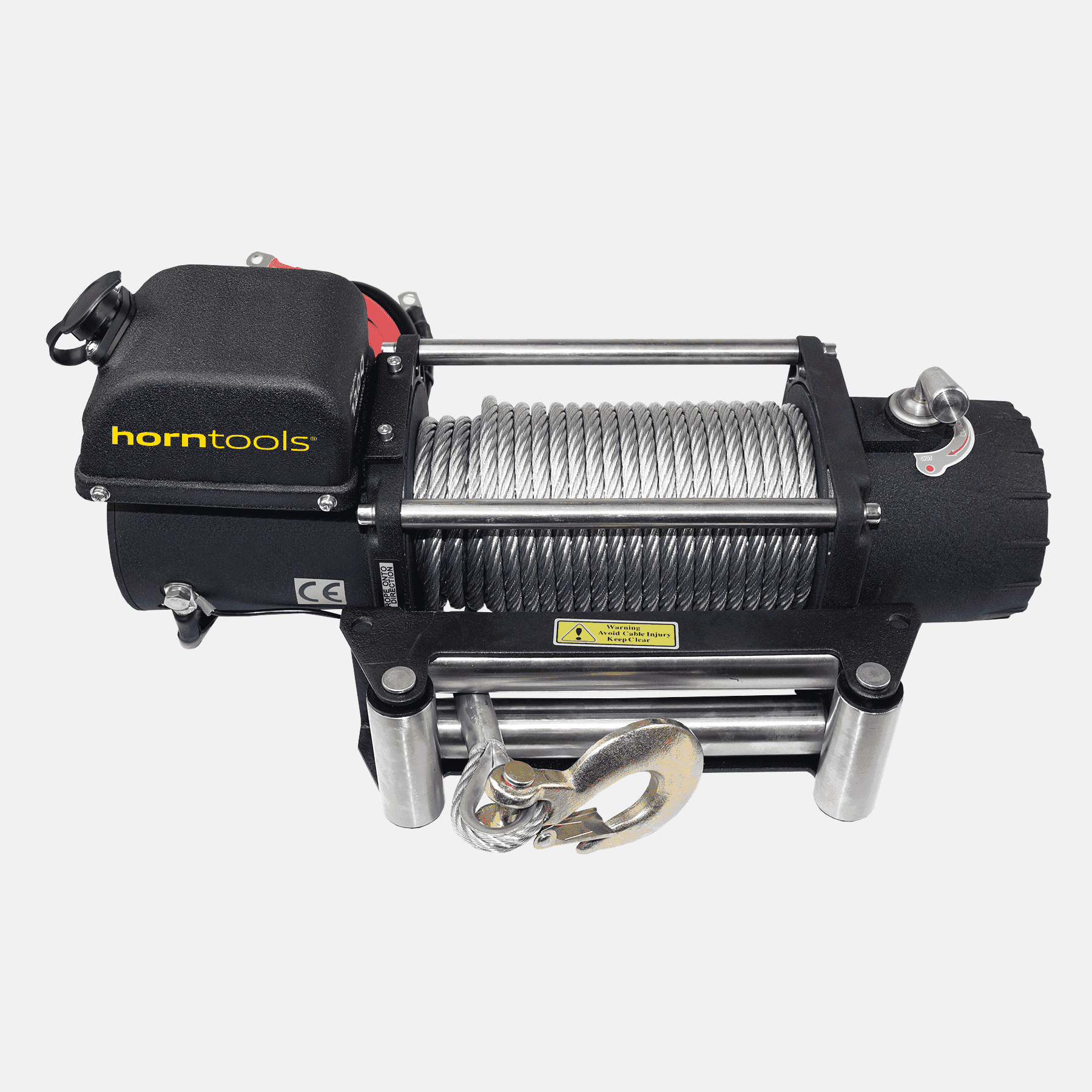

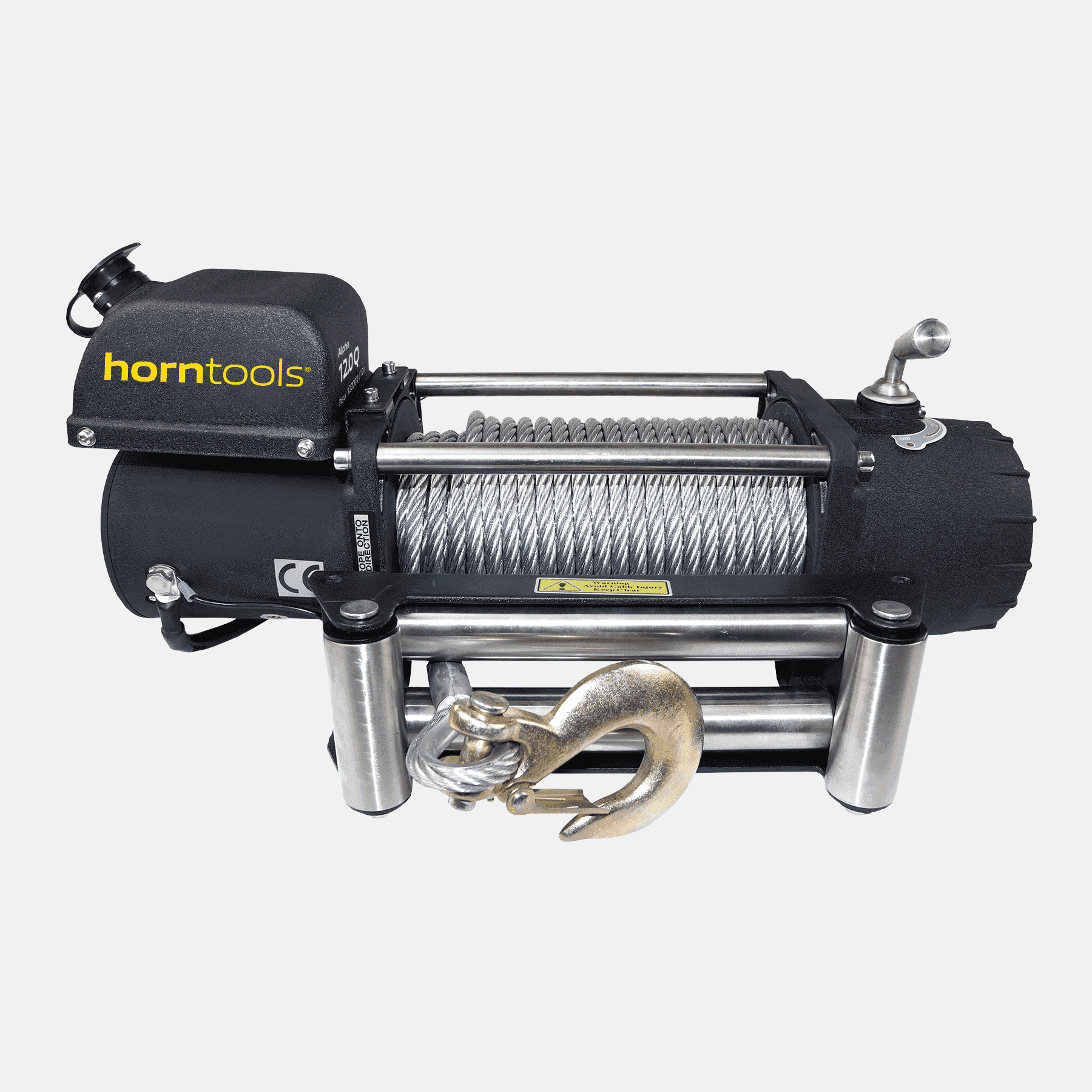

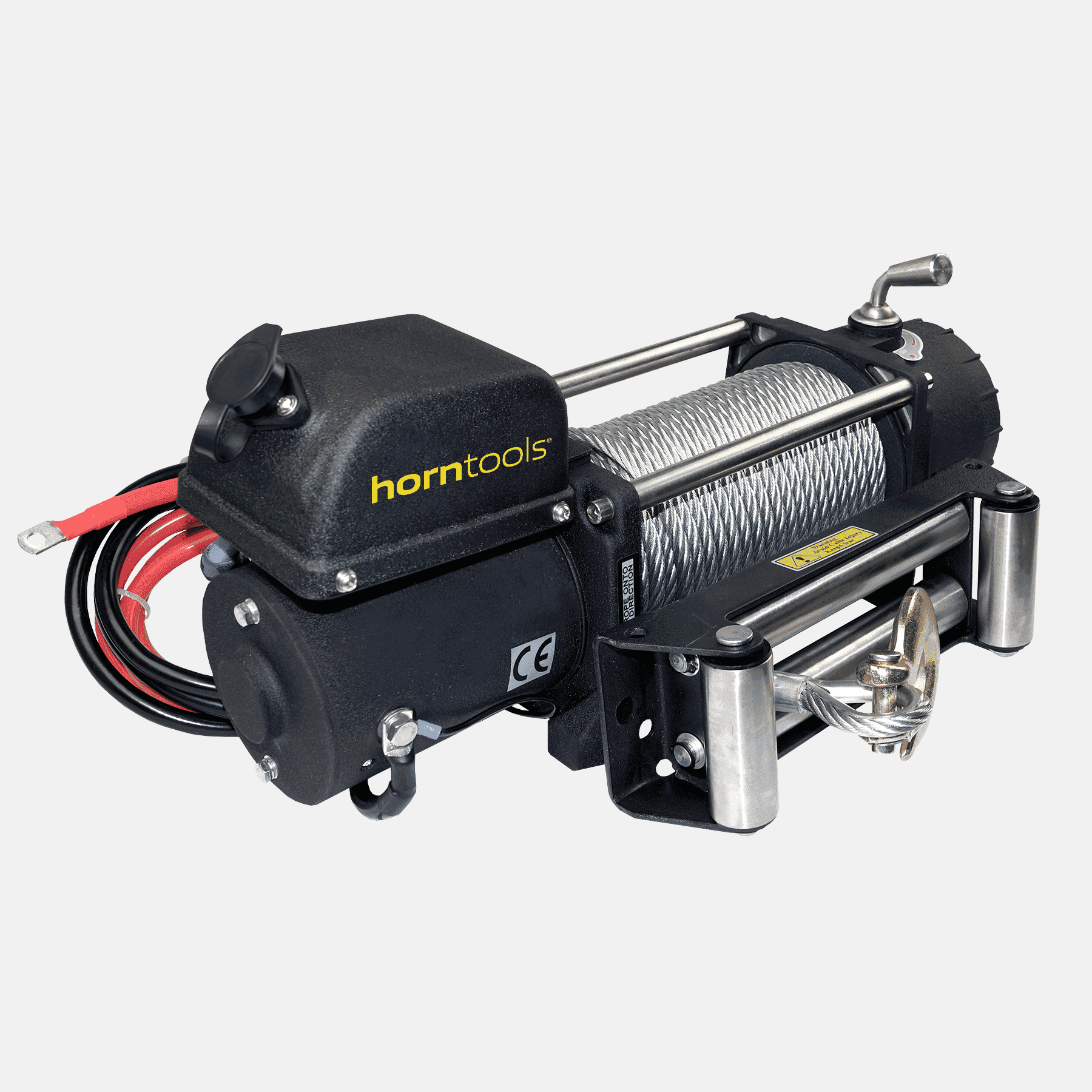

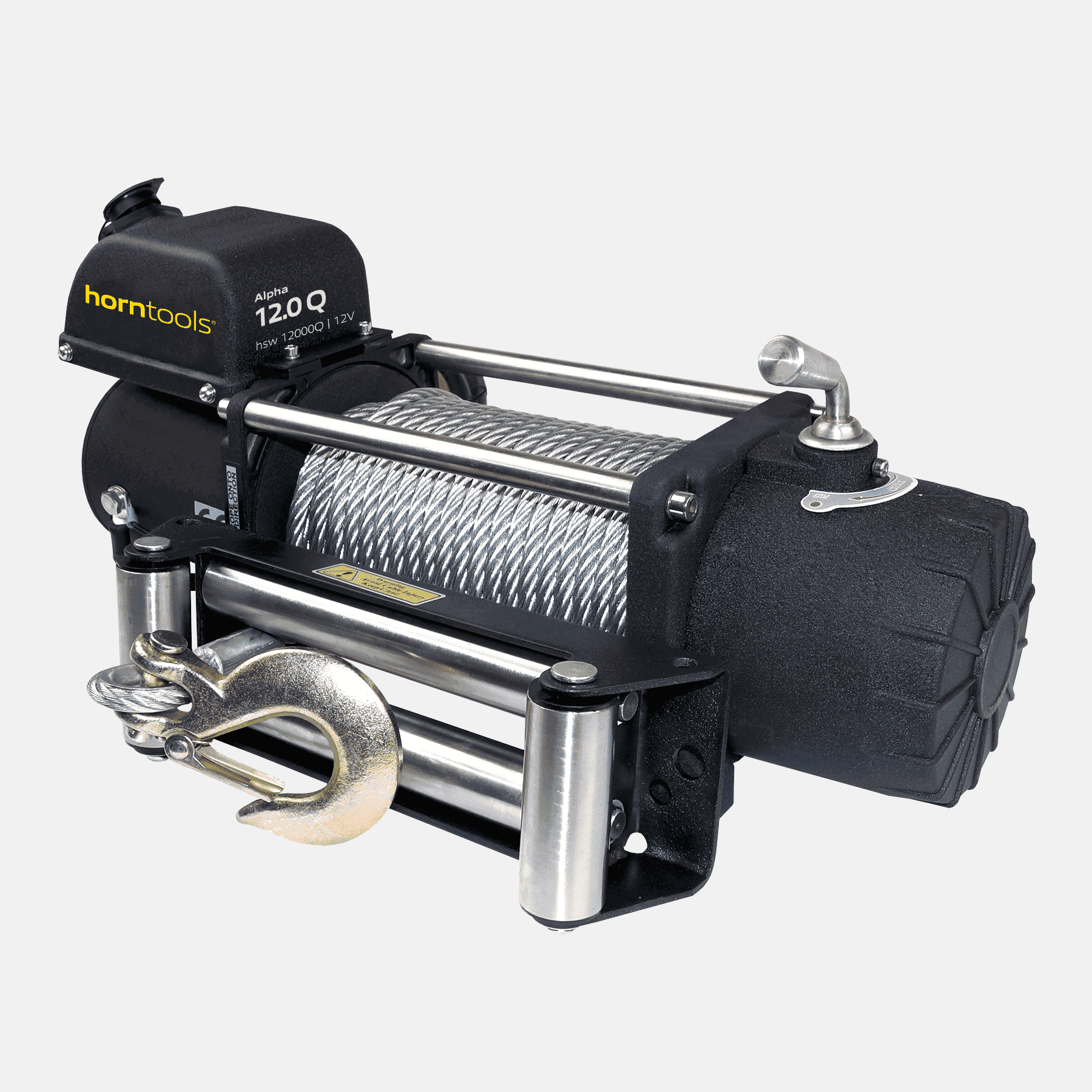

Winch Alpha 5.4 tons Quick

Sale price1.199,00€

Tax included. Shipping calculated at checkout

SKU: HSW12000-Q-12VDY_XGTIN: 9008683059040
Tension: 12V

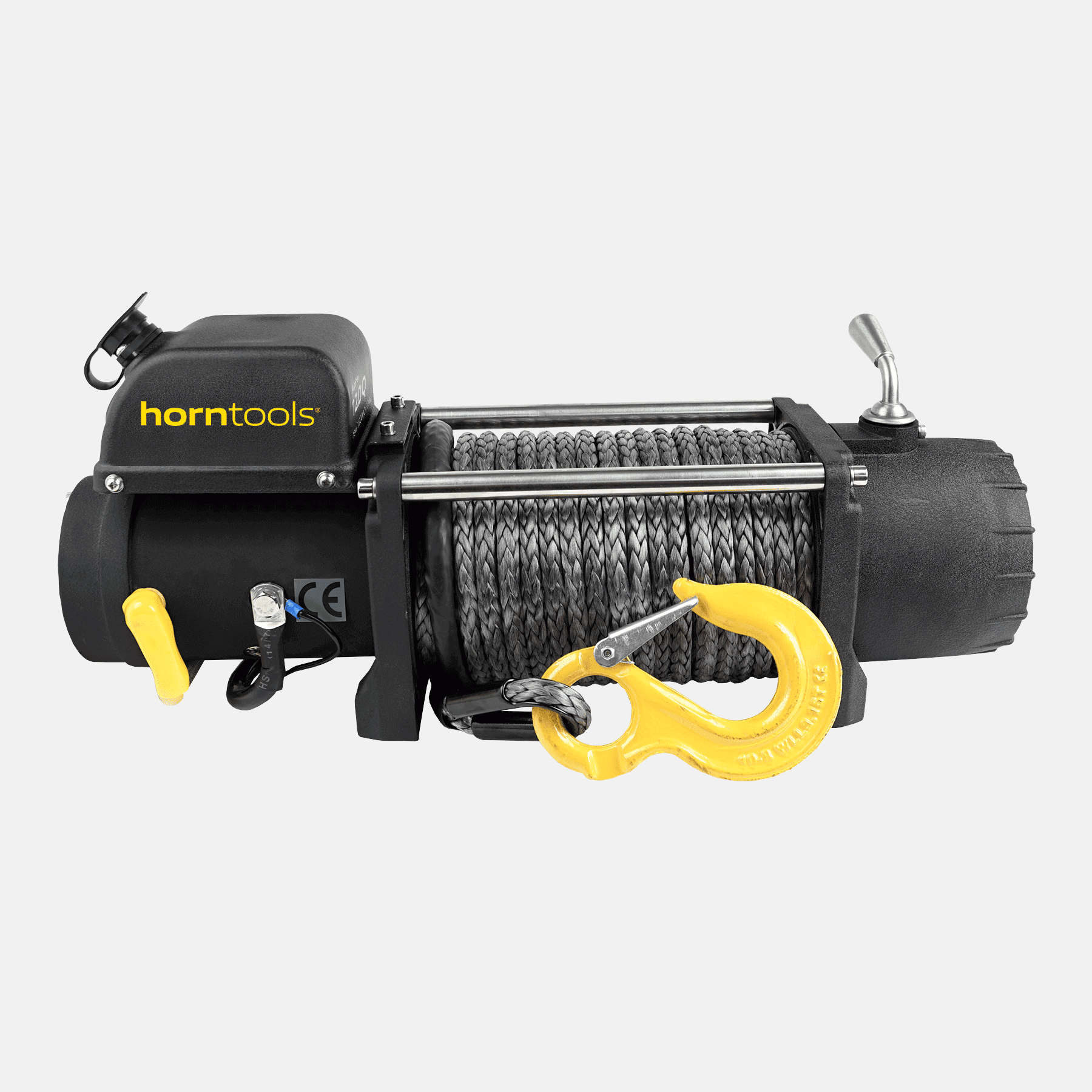

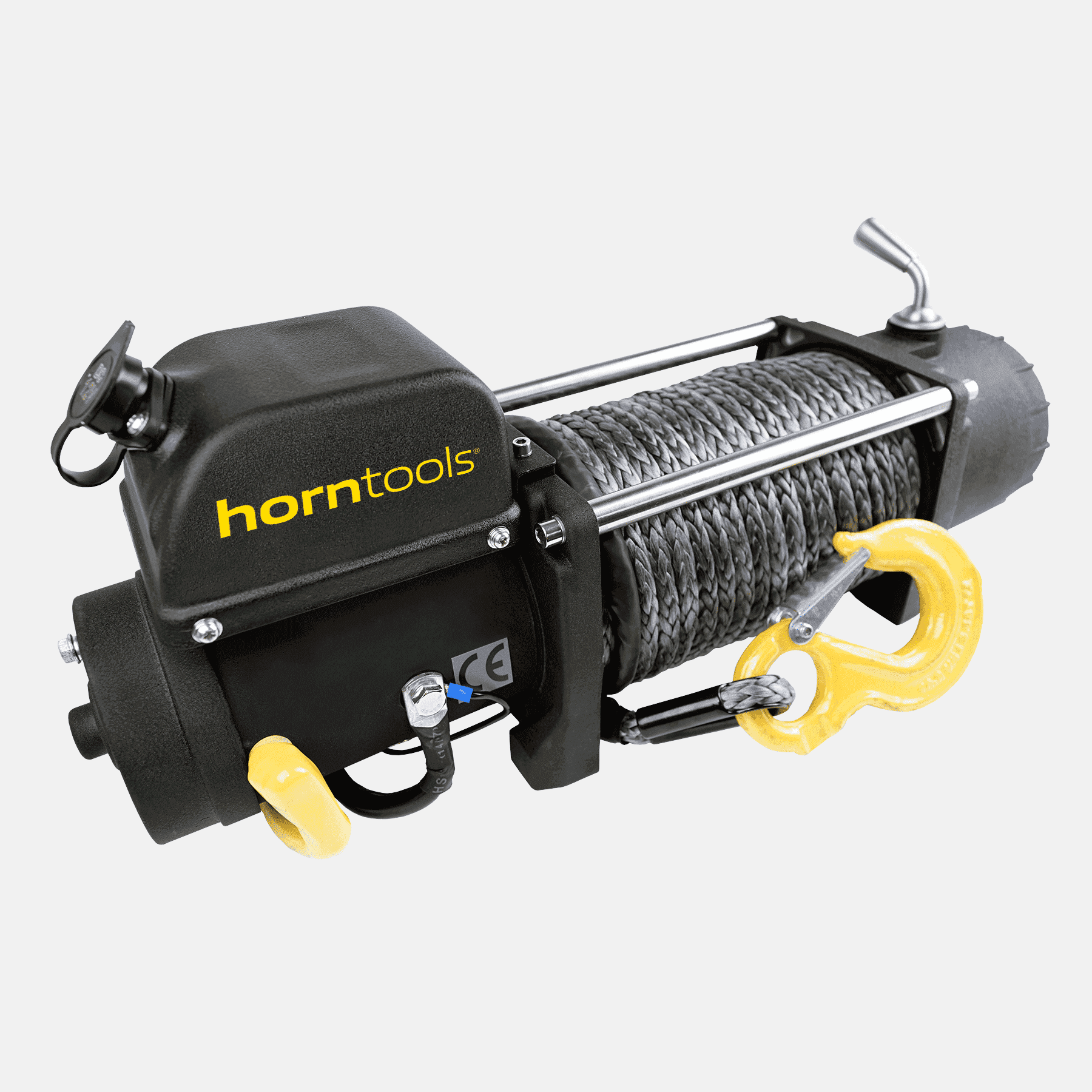

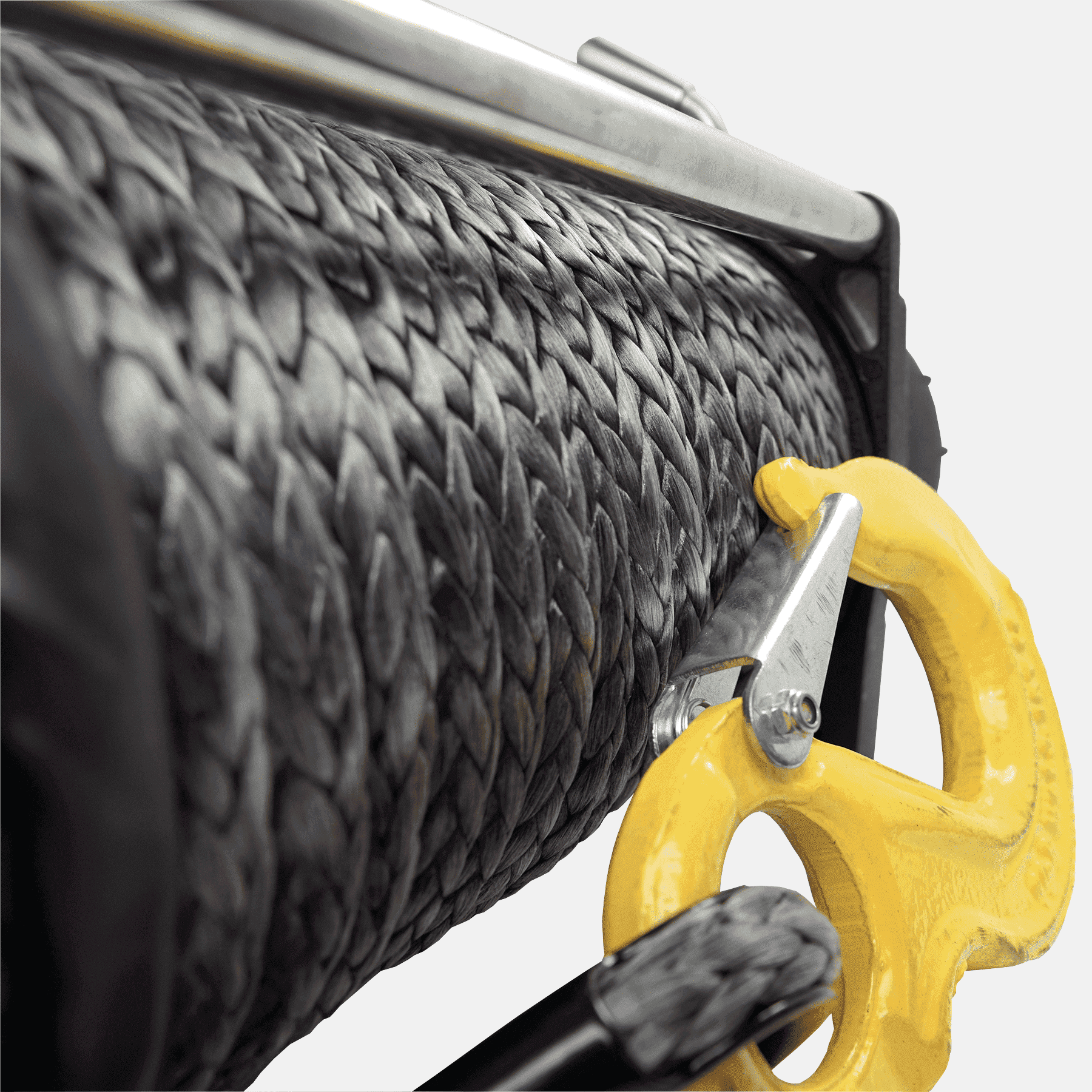

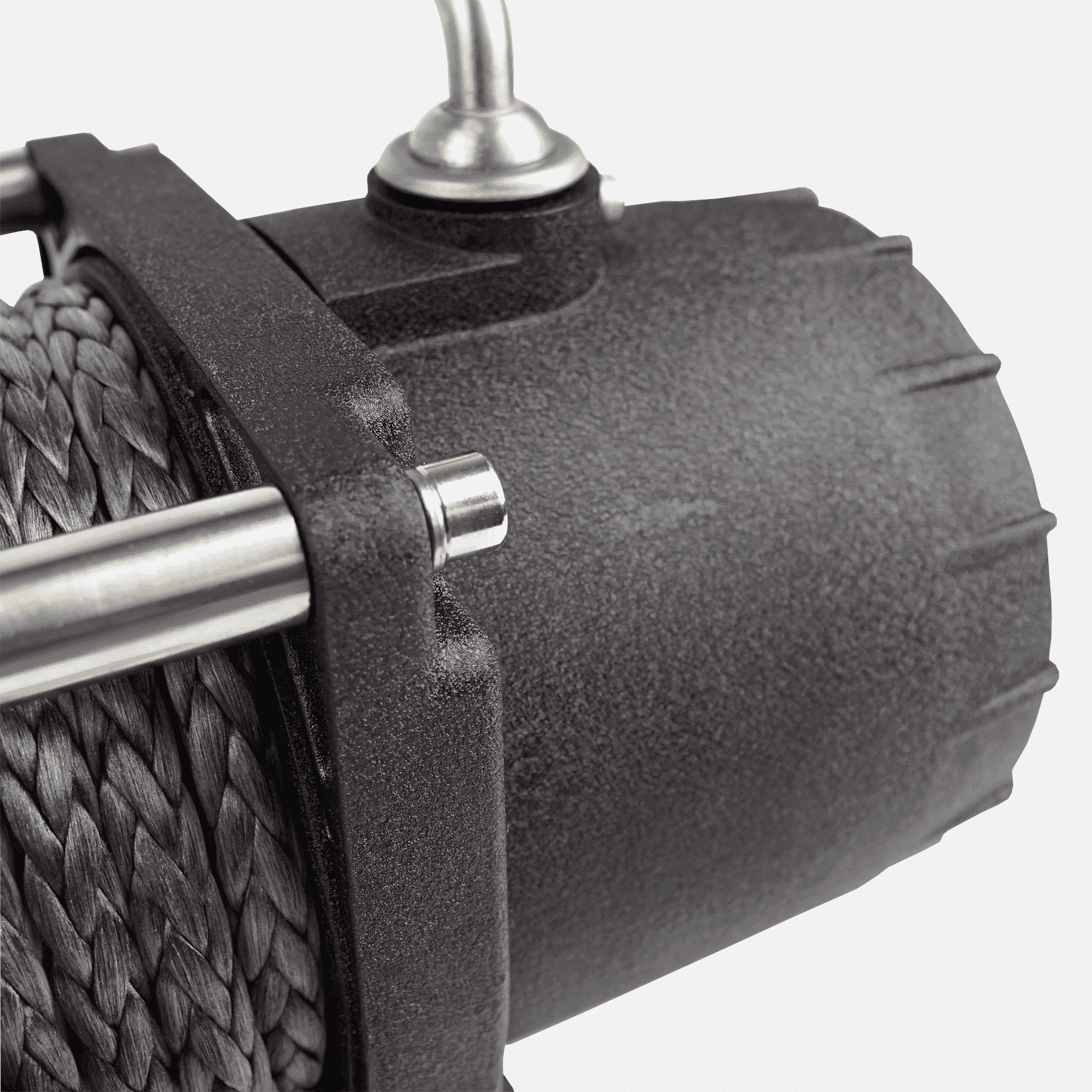

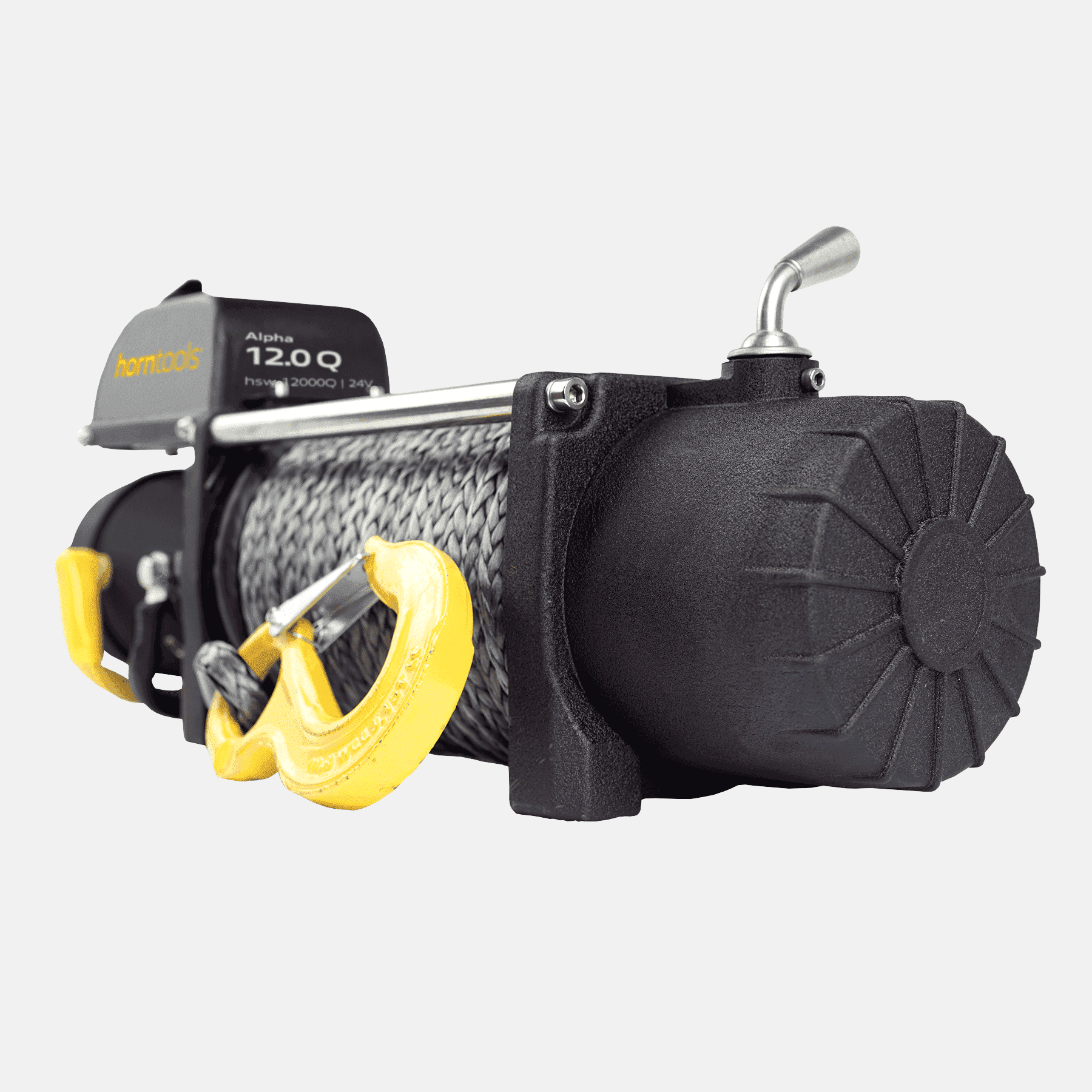

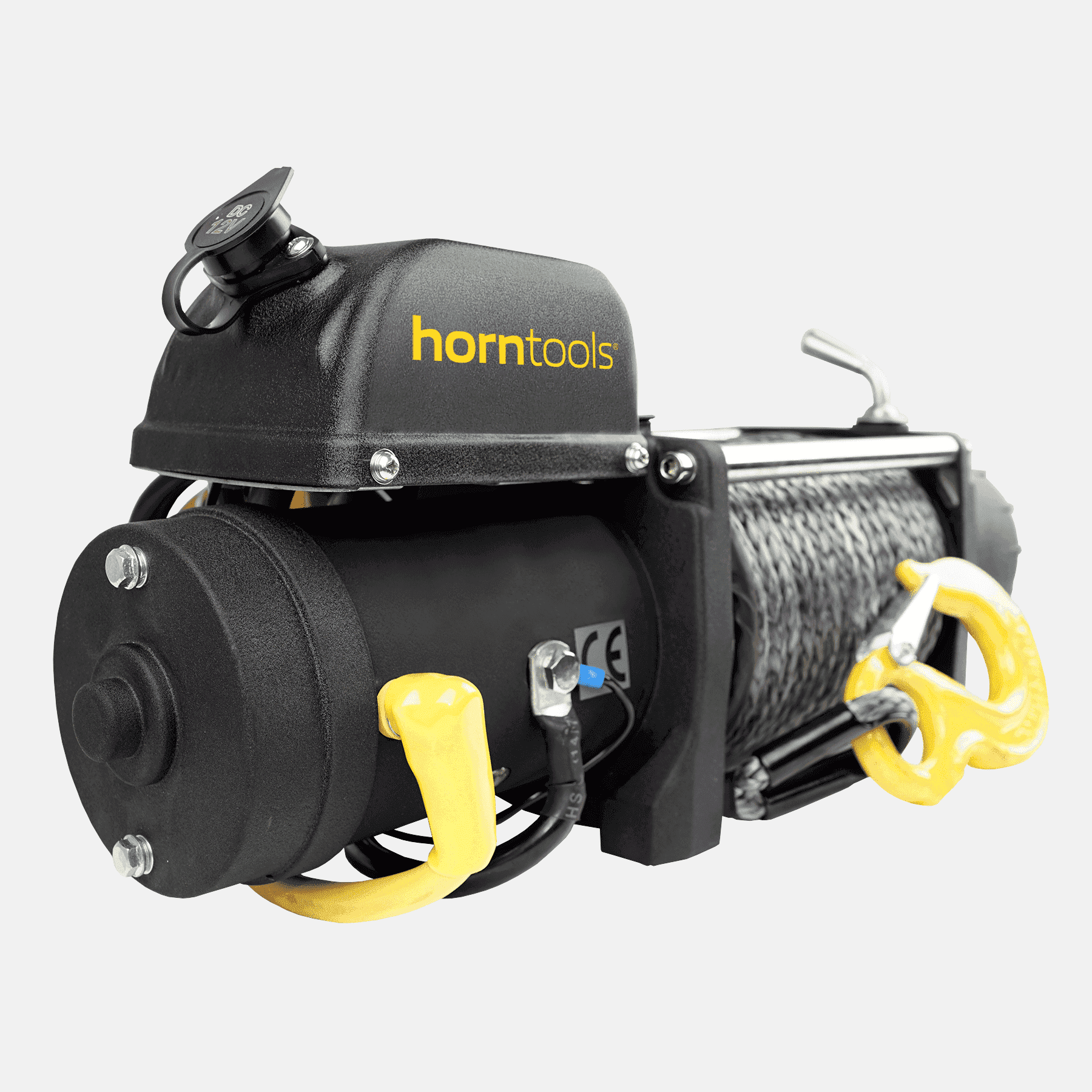

Rope type: Synthetic rope
  • Developed in Austria
  • 5 year guarantee
  • Free advice
Description

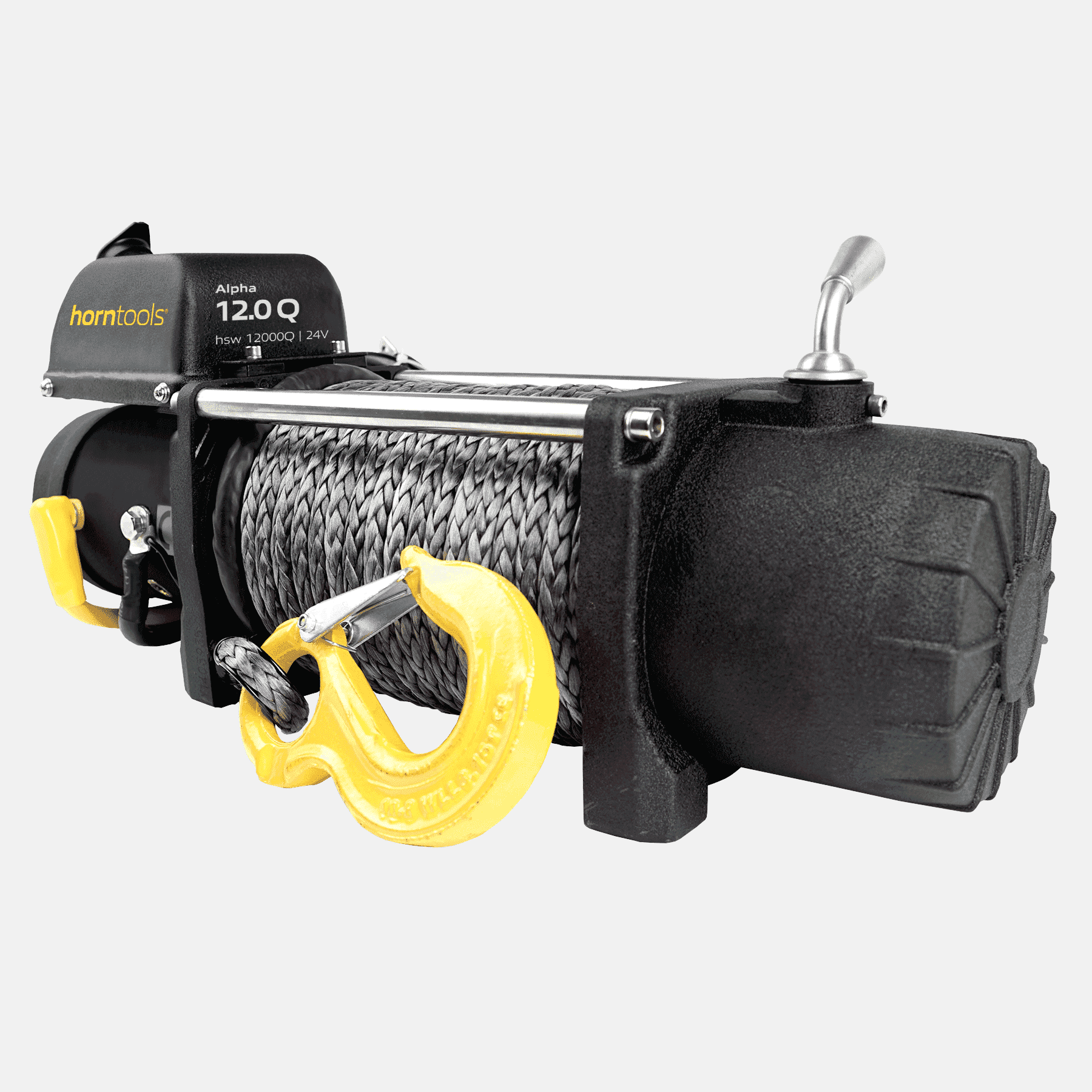

The horntools Alpha 12.0 models are among the strongest and fastest winches. They are versatile, have a low weight and a compact design. This makes them ideal for vehicles with a total weight of up to 4 tons. The Alpha 12.0 winch from horntools can be used in a variety of ways on your vehicle. It can be installed as a front winch or mounted directly on the bumper.

The special thing about the Quick models of the Alpha series is the extremely high maximum pulling speed of 11 m/min (measured without load). This allows you to pull your loads or other items out of the mud or onto the loading area even faster.

Characteristics:

  • Motor IP67 sealed by groove with sealing ring
  • Freewheel lever
  • Stainless steel crossbars
  • Reinforced rope drum
  • Powder-coated aluminum die-cast housing motor/gearbox
  • Internal drum brake with 3 brake shoes
  • Removable control unit (so that the control can be installed anywhere)
  • Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

Technical details:

  • Max. power consumption: 600 amps
  • Voltage: 12V/24V
  • Rope (∅ x length): 9.2 mm x 26 m
  • Drum (∅ x length): 63 x 226 mm

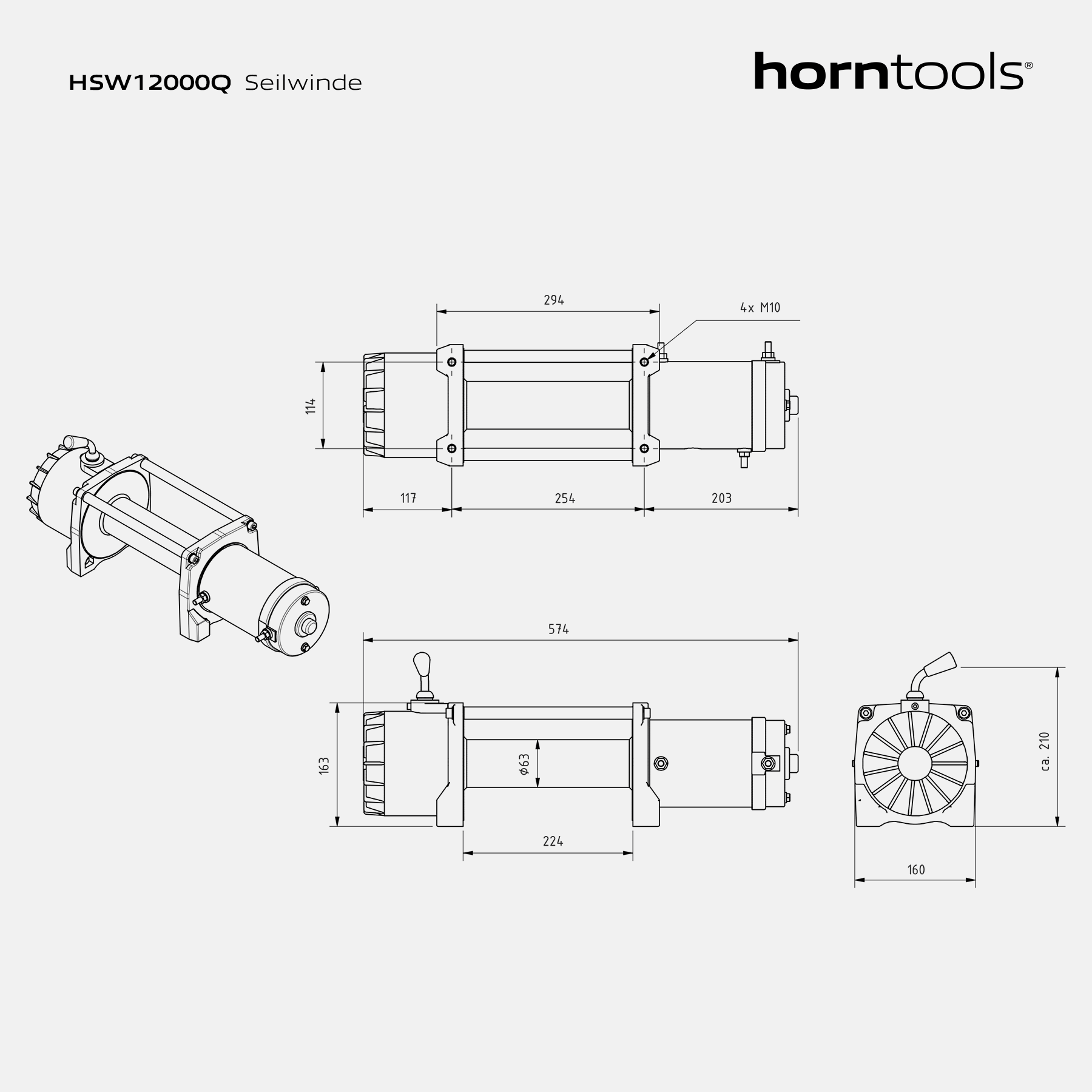

  • Overall size (LxWxH): 577 x 160 x 230 mm
  • Weight: 39.8 kg

Scope of delivery:

  • Winch
  • Roller cable window
  • Fastening screws
  • Steel cable with hooks
  • Cable remote control
  • Radio remote control
  • Operation manual

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!

The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

Guarantee:

We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer.
This winch can produce a higher level of noise.
