Winch Alpha 4.3 tons

Name: Winch Alpha 4.3 tons
Brand: Horntools
SKU: HSW9500-12V
Price: 549.9 EUR
Availability: InStock
Rating: 5.0 (2 reviews)

549,90€

Tax included. Shipping calculated at checkout

Quantity:

SKU: HSW9500-12V

GTIN: 9008683002282

Tension:

12V

Rope type:

Steel cable

Steel cable Synthetic rope

Variant

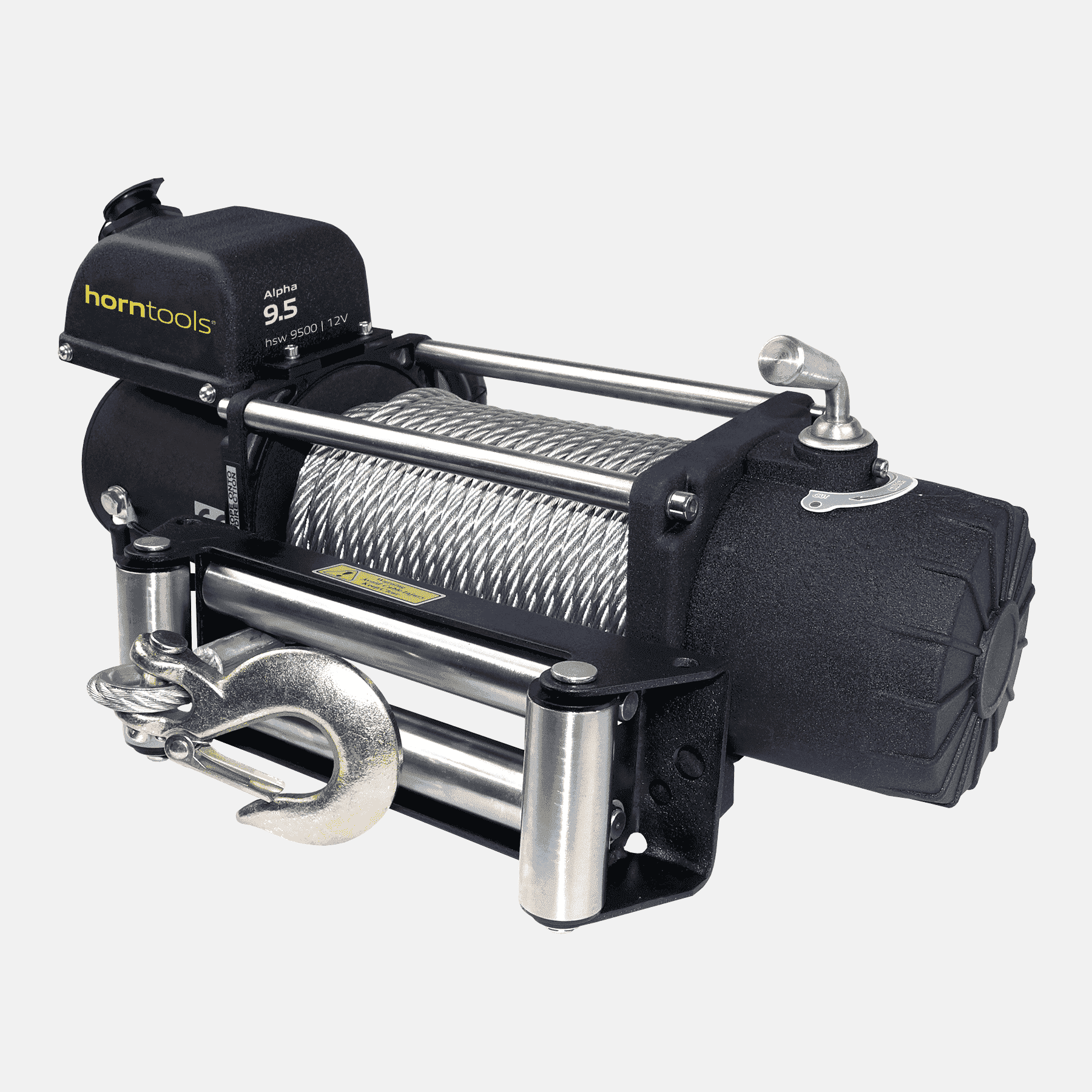

The Alpha 9.5 series is one of the most popular winches among our customers. They are versatile, have a low weight and a compact design.
This makes them ideal for vehicles such as the Ford Ranger, Land Rover Defender or Mitsubishi L200.

The Alpha 9.5 winch from horntools can be used in a variety of ways on your vehicle. It can be used both as a front winch, installed or directly on the bumper, and as a rear winch on a trailer hitch or on a suitable carrier on the loading area. However, this requires a version with a synthetic rope.

In addition to the included cable remote control, this winch can also be expanded with a radio remote control.

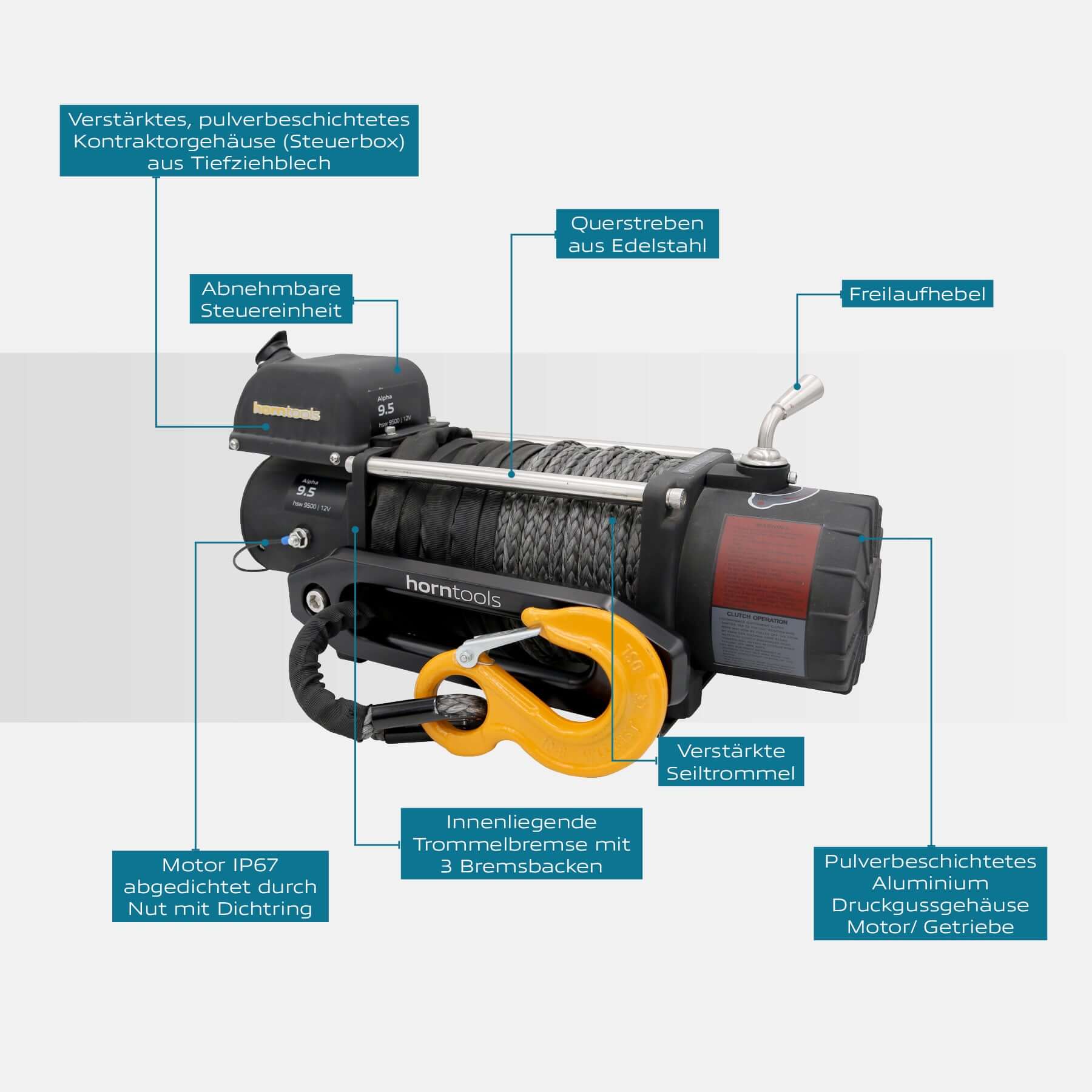

Characteristics:

Motor IP67 sealed by groove with sealing ring
Freewheel lever
Stainless steel crossbars
Reinforced rope drum
Powder-coated aluminum die-cast housing motor/gearbox
Internal drum brake with 3 brake shoes
Removable control unit (so that the control can be installed anywhere)
Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

Scope of delivery:

Winch
Roller cable window (steel cable) / aluminum cable window (synthetic cable)
Fastening screws
Rope
Cable remote control
Operation manual

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!

The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer. This winch can produce a higher level of noise.

FAQ & Download

Downloads

User Guide

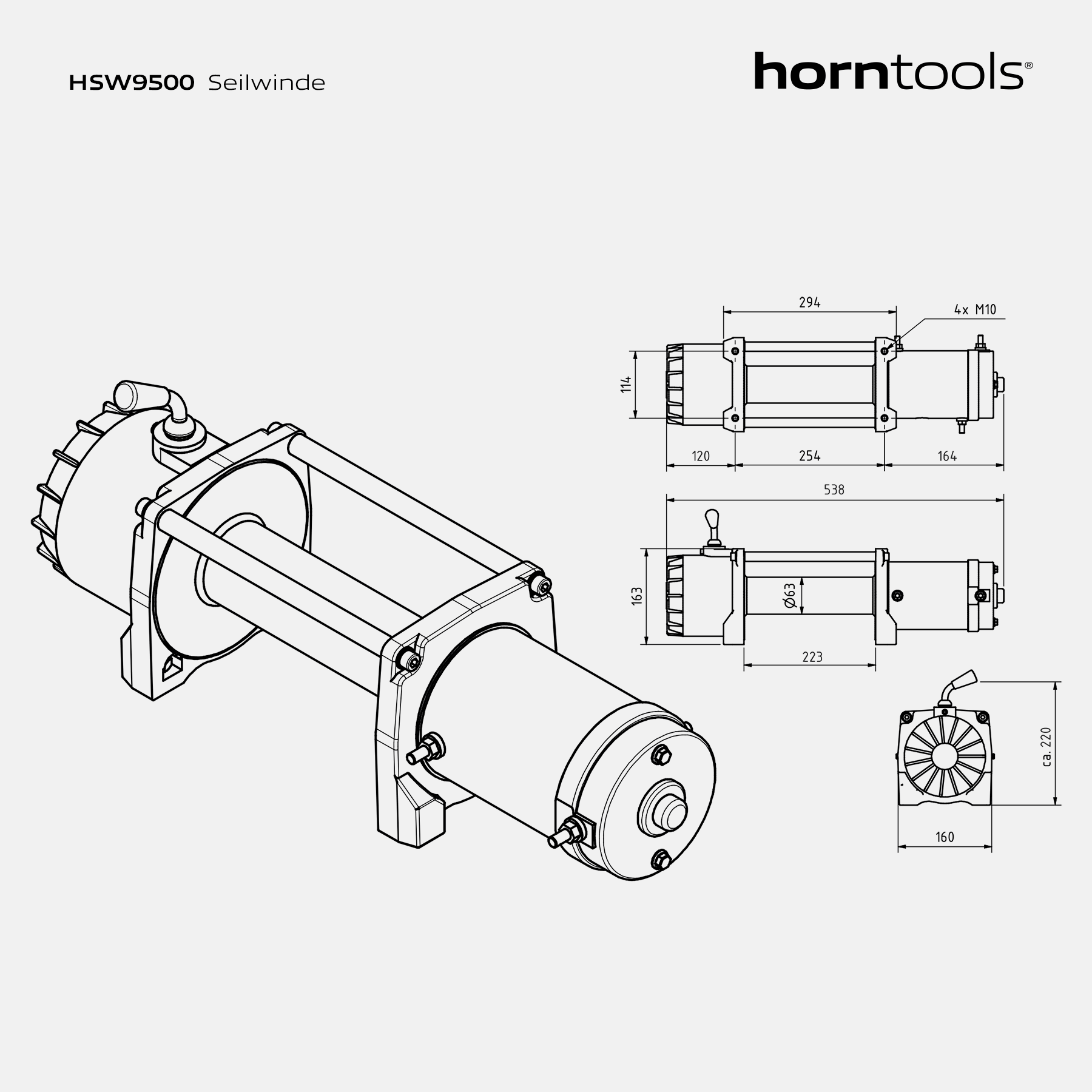

Drawing

Technical data

12 Volt

Gearbox: 3-stage planetary gearbox
Max. tractive force: 4300 kg

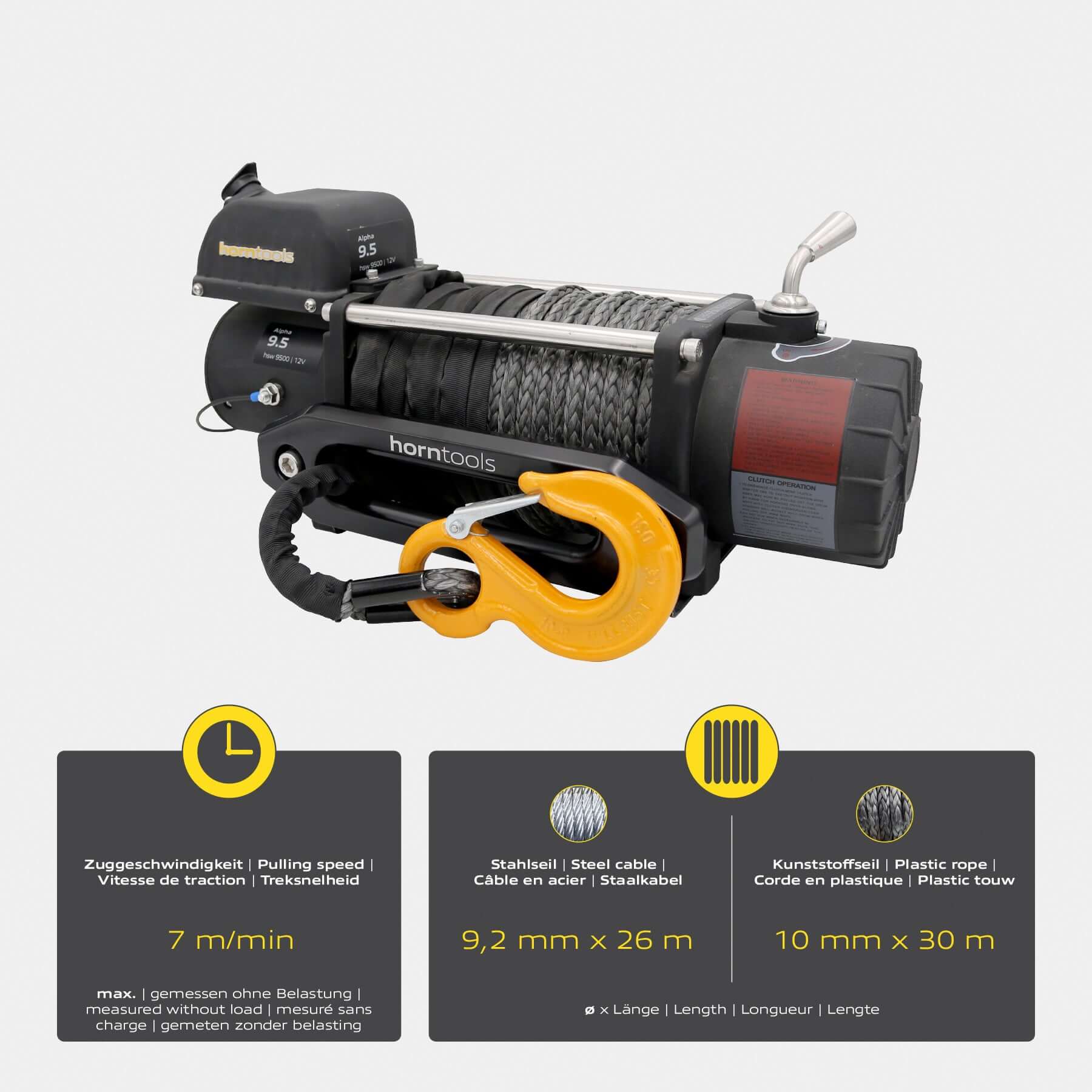

Max. pulling speed: 7 m/min* Weight: 37.1 kg
Weight: 37.1 kg
Motor type: Series Wound**
Reduction ratio: 230:1
Max. Power consumption: 365 amps
Voltage: 12 V
Steel cable (∅ x length): 9.2 mm x 26 m
Synthetic rope (∅ x length): 10 mm x 30 m
Drum (∅ x length): 63 x 223 mm

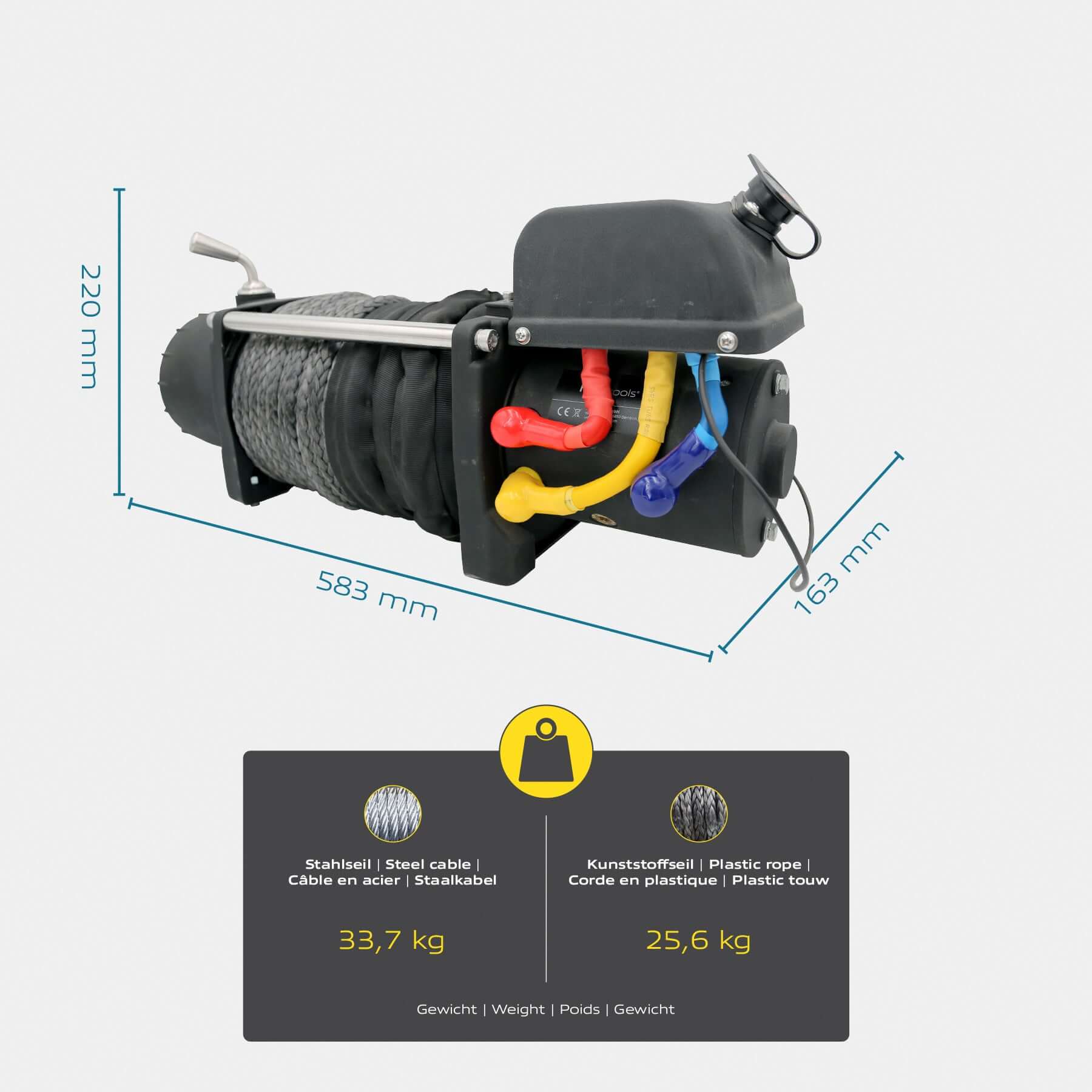

Overall size (LxWxH): 538 x 163 x 220 mm
Cable cross-section: 35 mm²
Cable length: 180 cm

24 Volt

Gearbox: 3-stage planetary gearbox
Max. tractive force: 4300 kg
Max. pulling speed: 8 m/min*
Motor type: Series Wound**
Reduction ratio: 230:1
Max. power consumption: 290 amps
Voltage: 24 V
Steel cable (∅ x length): 9.2 mm x 26 m
Synthetic rope (∅ x length): 10 mm x 30 m
Drum (∅ x length): 63 x 223 mm
Overall size (LxWxH): 538 x 163 x 220 mm
Weight: 37.1 kg
Cable cross-section: 35 mm²
Cable length: 180 cm

* measured without load
** magnetic field is generated electrically
