Winch Box - Mobile cable winch 1.8 tons

Do you want to be prepared for any rescue, but don't want to install a winch permanently on your vehicle? Then the new mobile Winch Box from horntools is just the thing for you.

Using the Winch Box

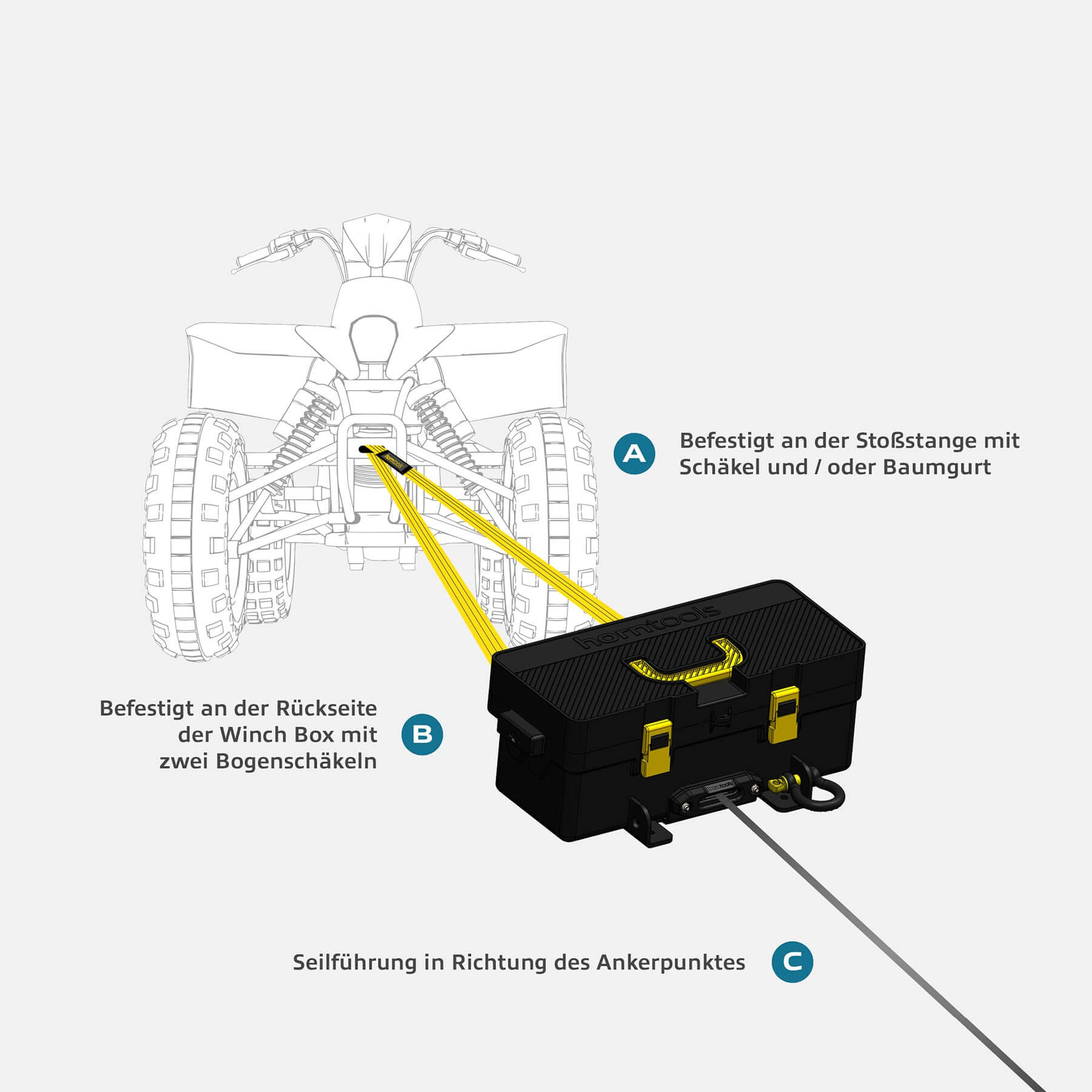

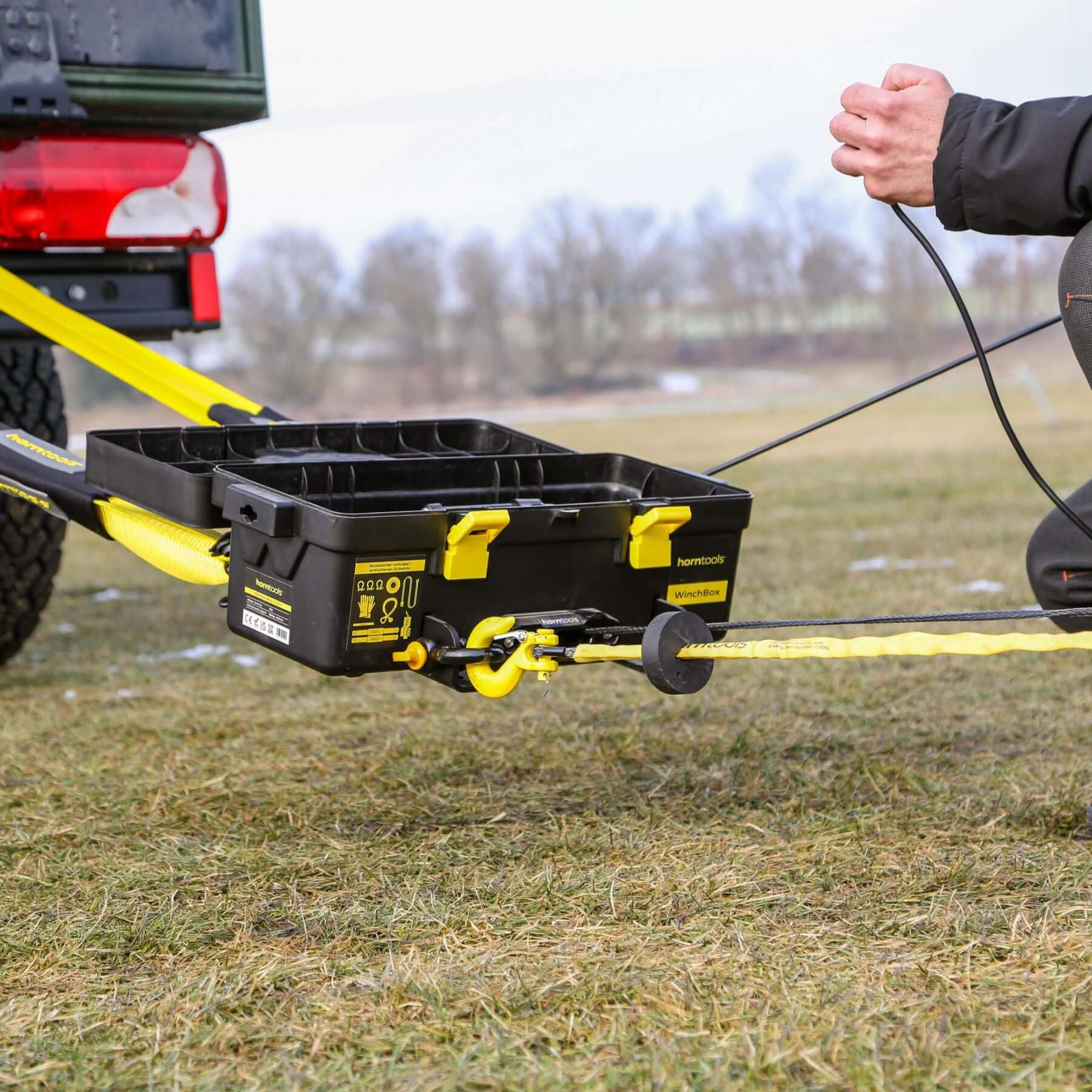

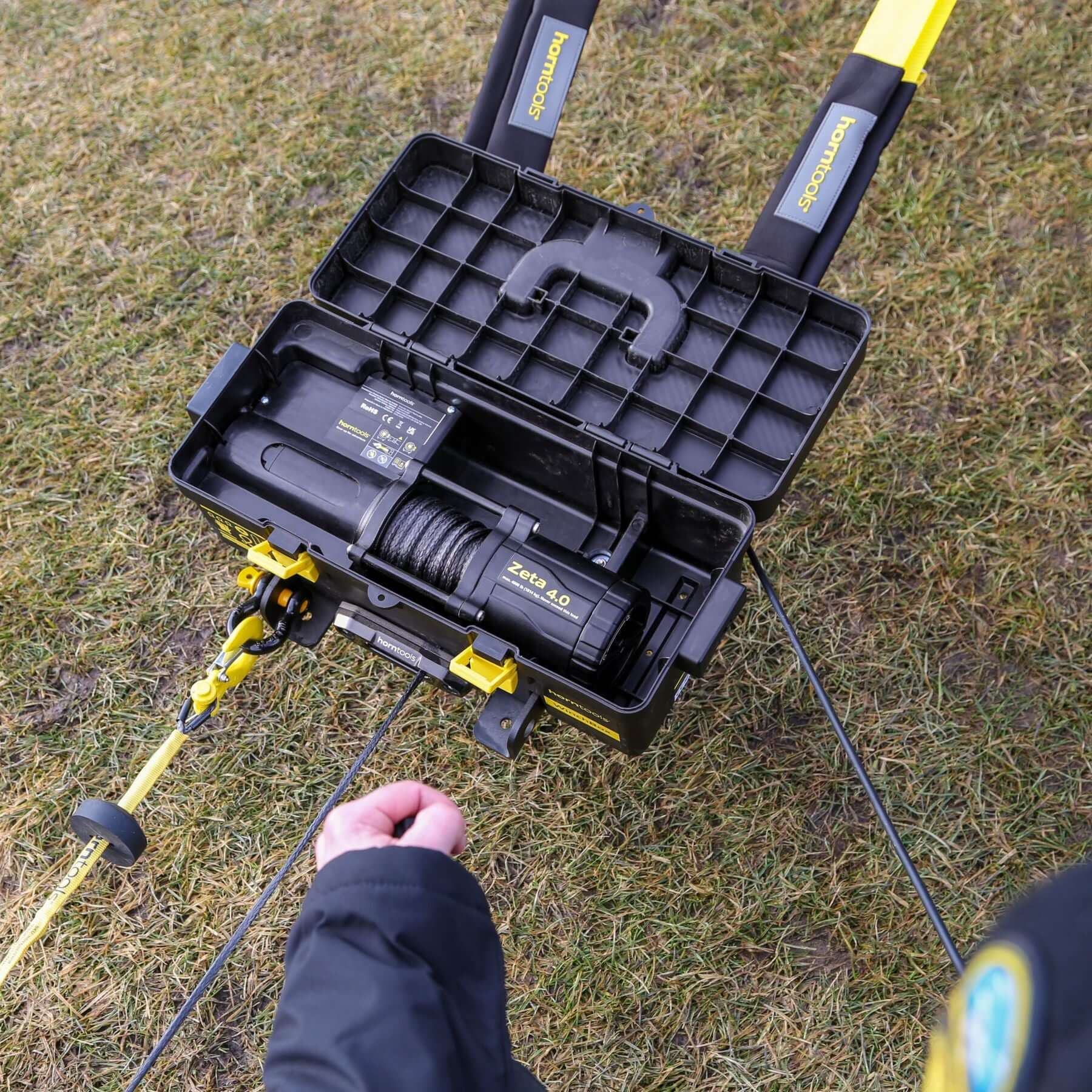

Mobile use:

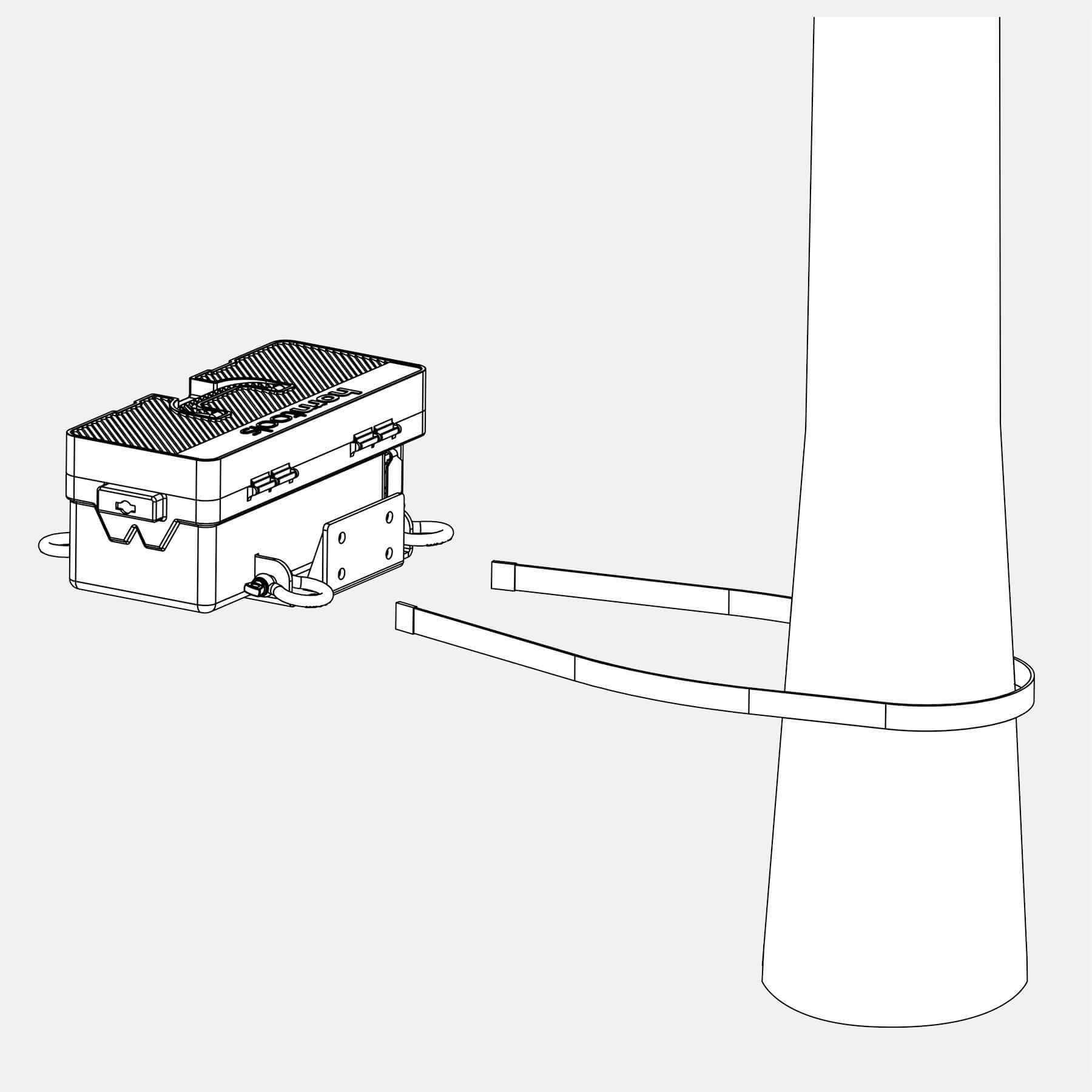

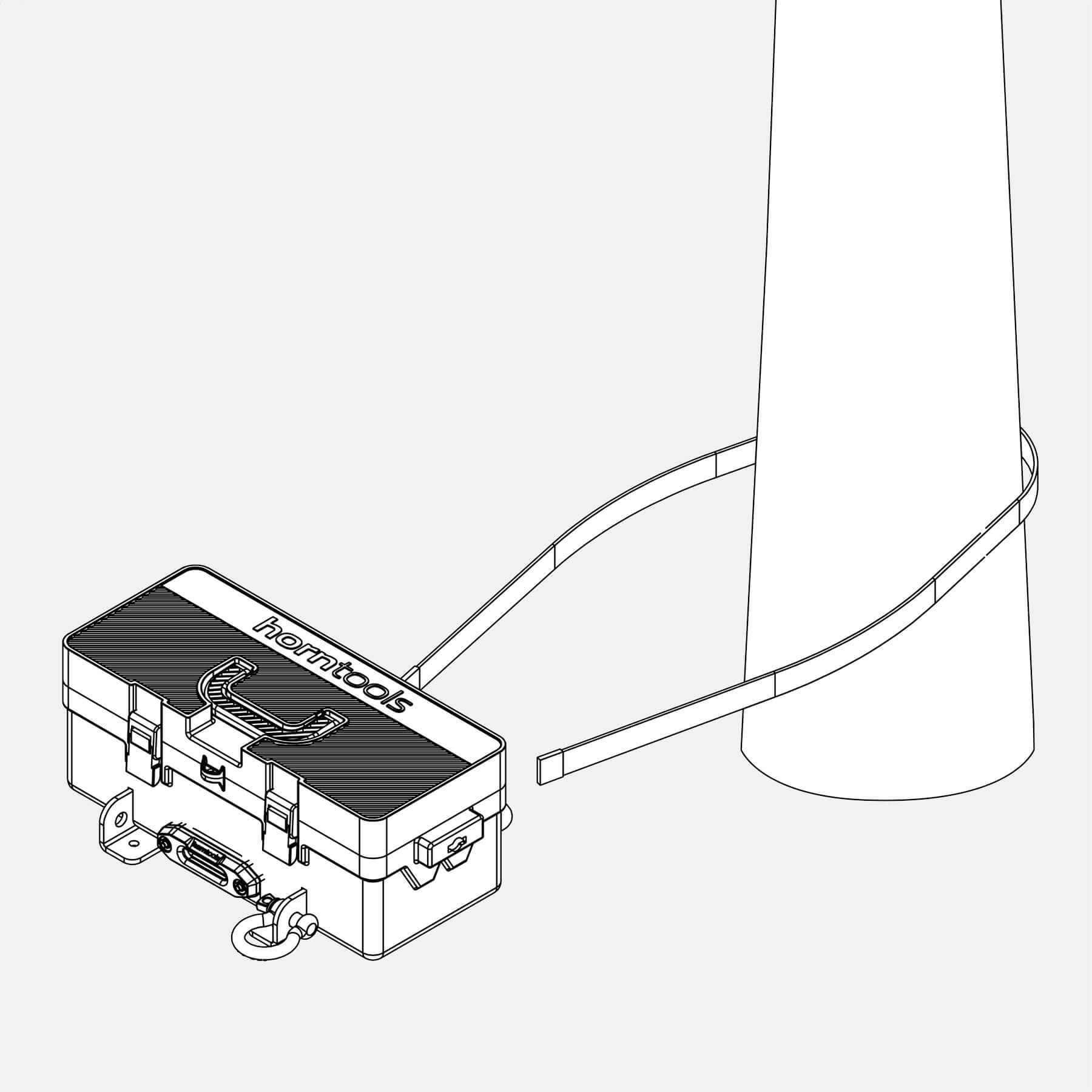

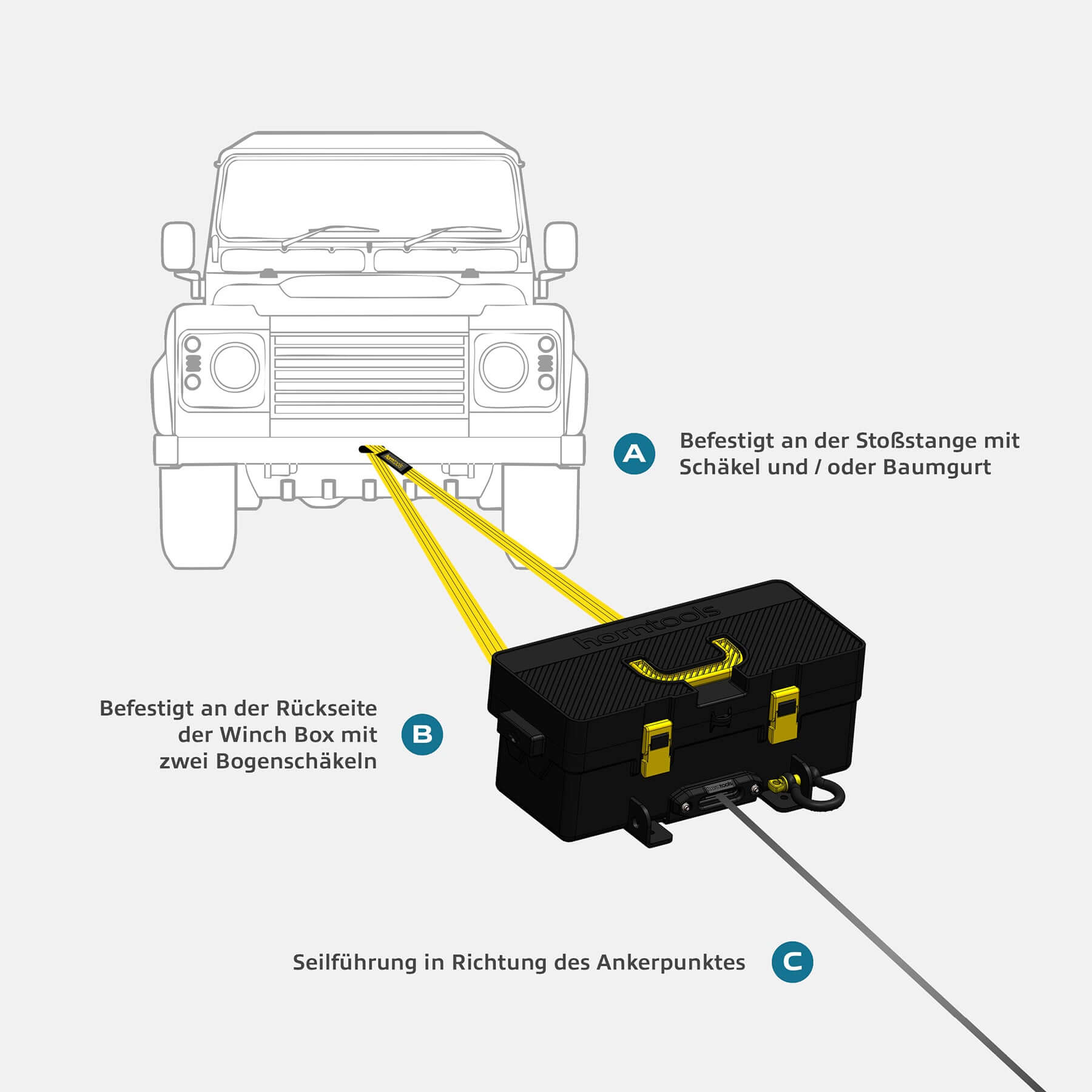

Using the included straps and shackles, the Winch Box can be easily used on the move. To do this, wrap the rear strap around a tree or attach it to a suitable anchor point. Then, attach the two loops to the rear shackles of the portable base plate. Always make sure that the straps do not come into contact with sharp edges or hot surfaces.

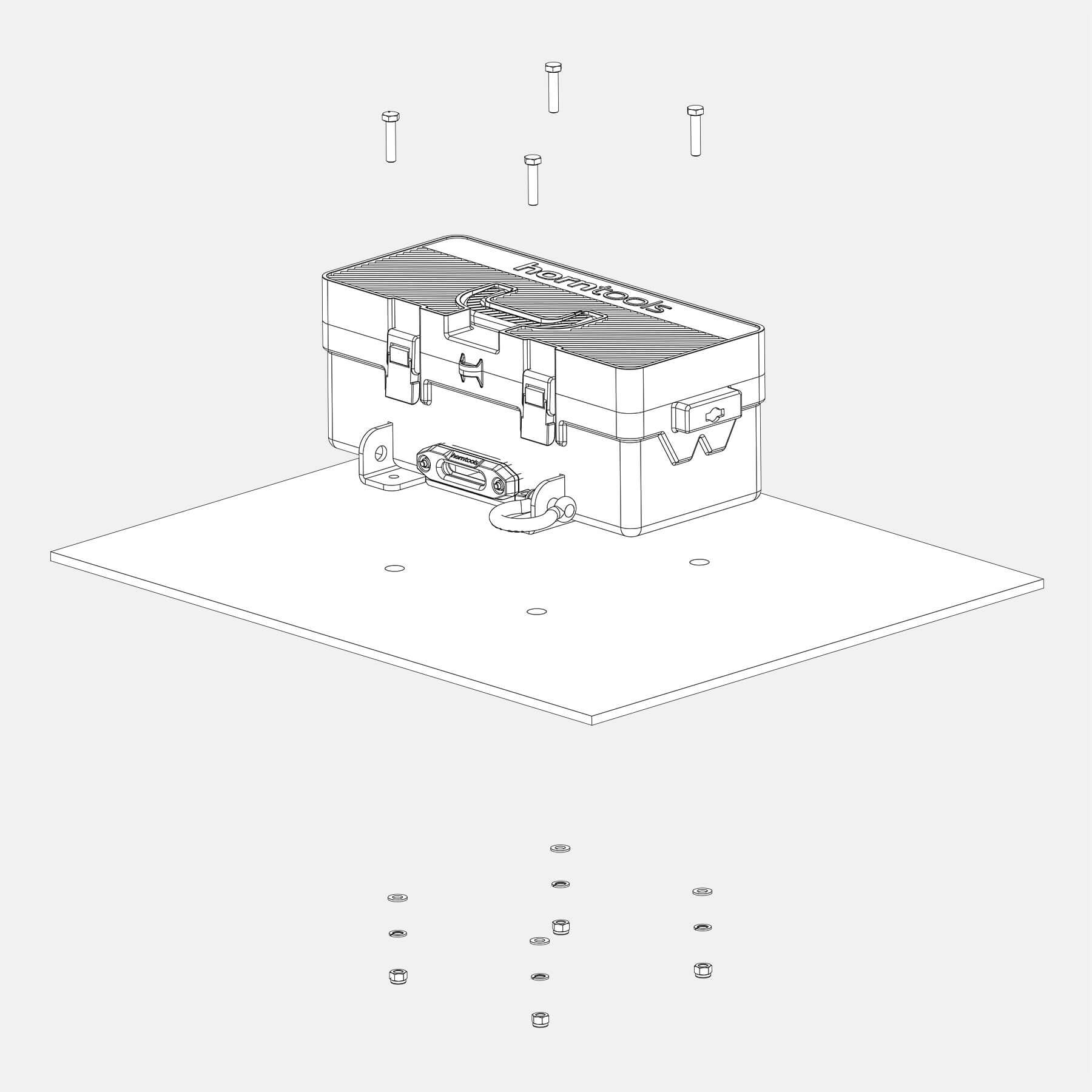

Fixed mounting - mounting with four screws:

The winch box can be securely mounted to a surface using the four outer screw holes on the mounting plate. To withstand the tensile forces, the mounting plate should have a minimum thickness of 6 mm (1/4 inch). Make sure the structure you're attaching it to is strong enough to withstand these forces. When mounting with four screws, the winch cable can be reattached to the front shackle for double-up.

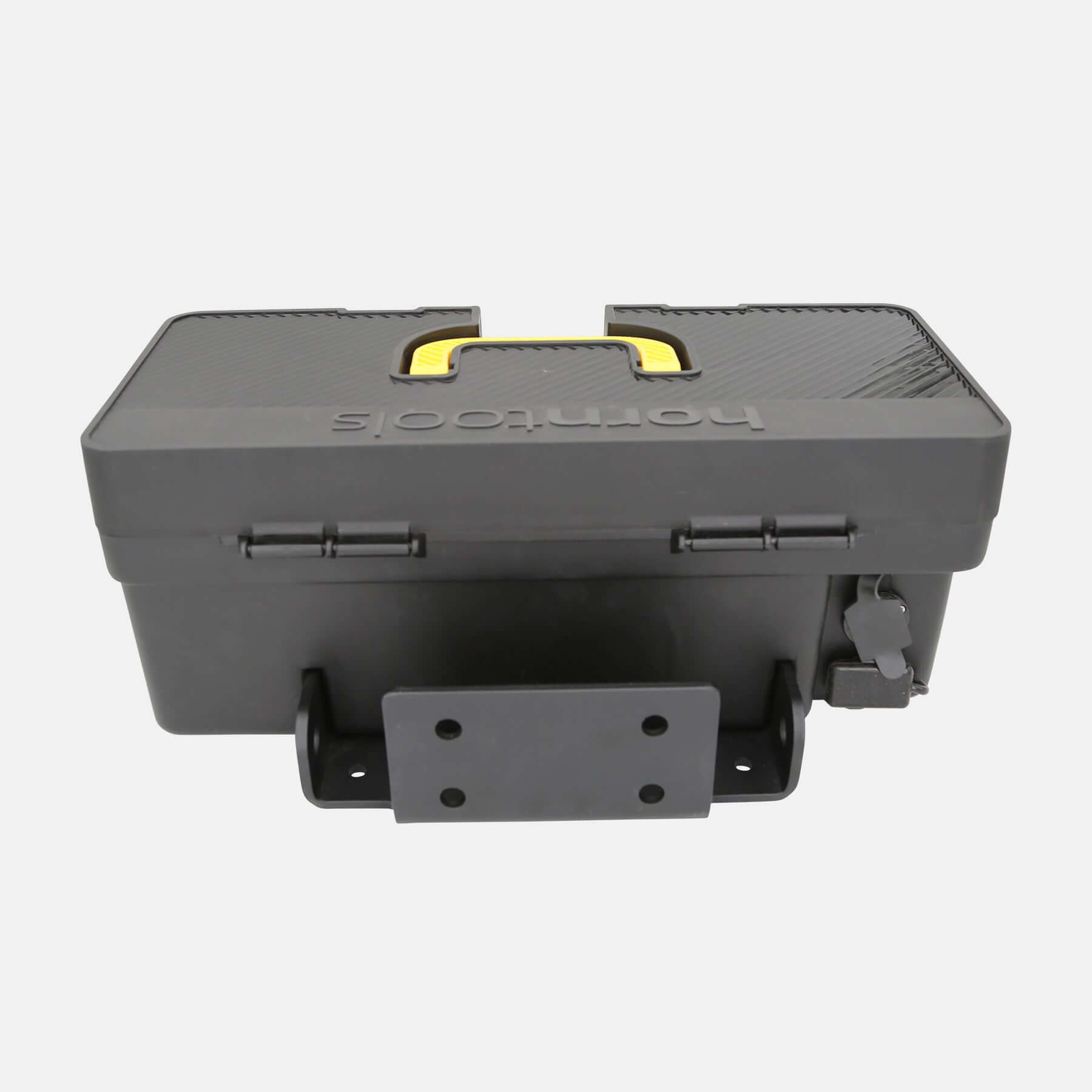

Fixed mounting - mounting with two screws:

For this configuration, set the winch to free spool and unwind enough rope from the drum to place the steel reinforcement plate underneath it, if it wasn't already installed during installation. To ensure the structure can withstand the tensile forces, the mounting plate should be at least 6 mm (1/4 inch) thick. Ensure the mounting structure can withstand these loads. Once installation and wiring are complete, the rope can be rewound onto the drum using the motor controller.

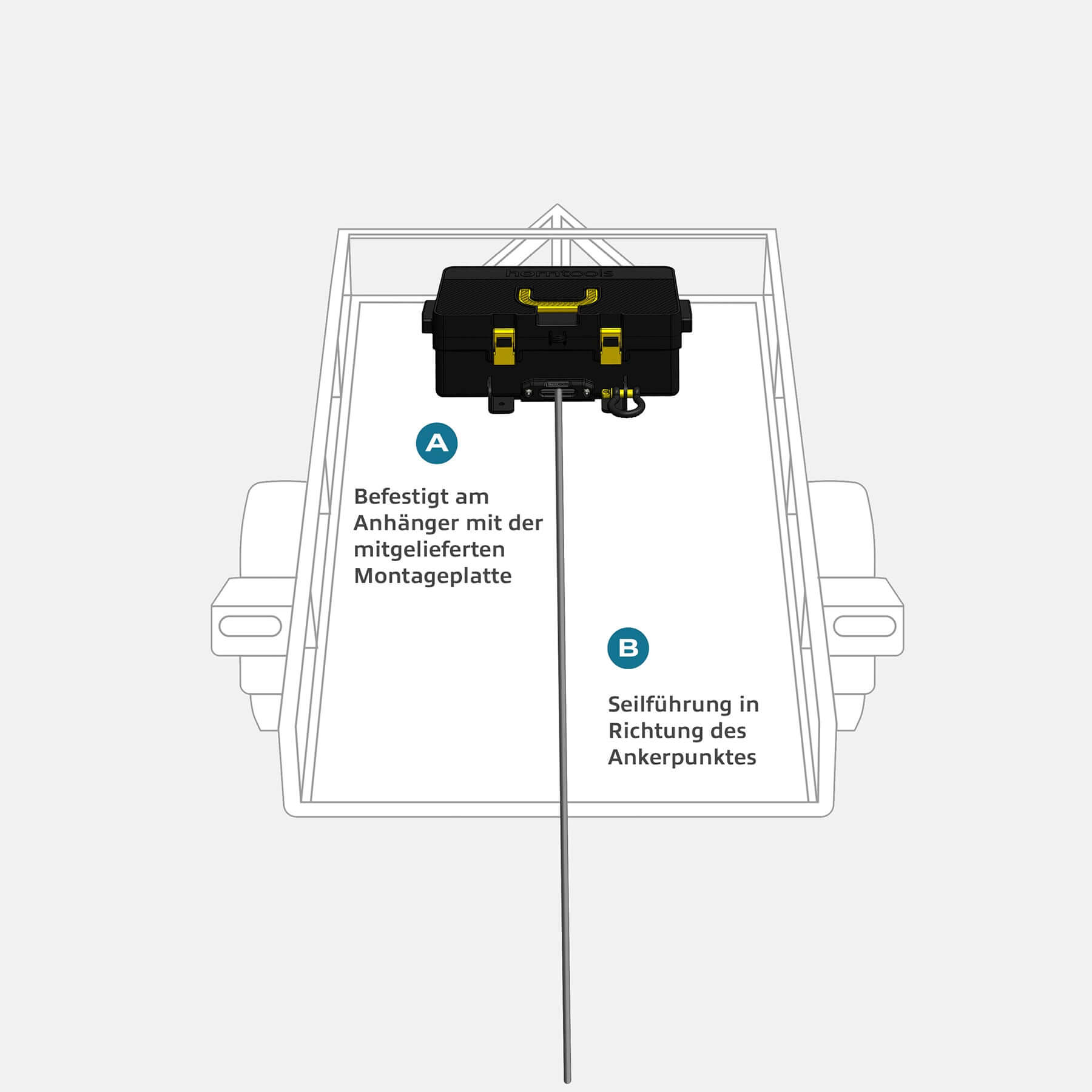

Mobile winch for trailers and boat trailers

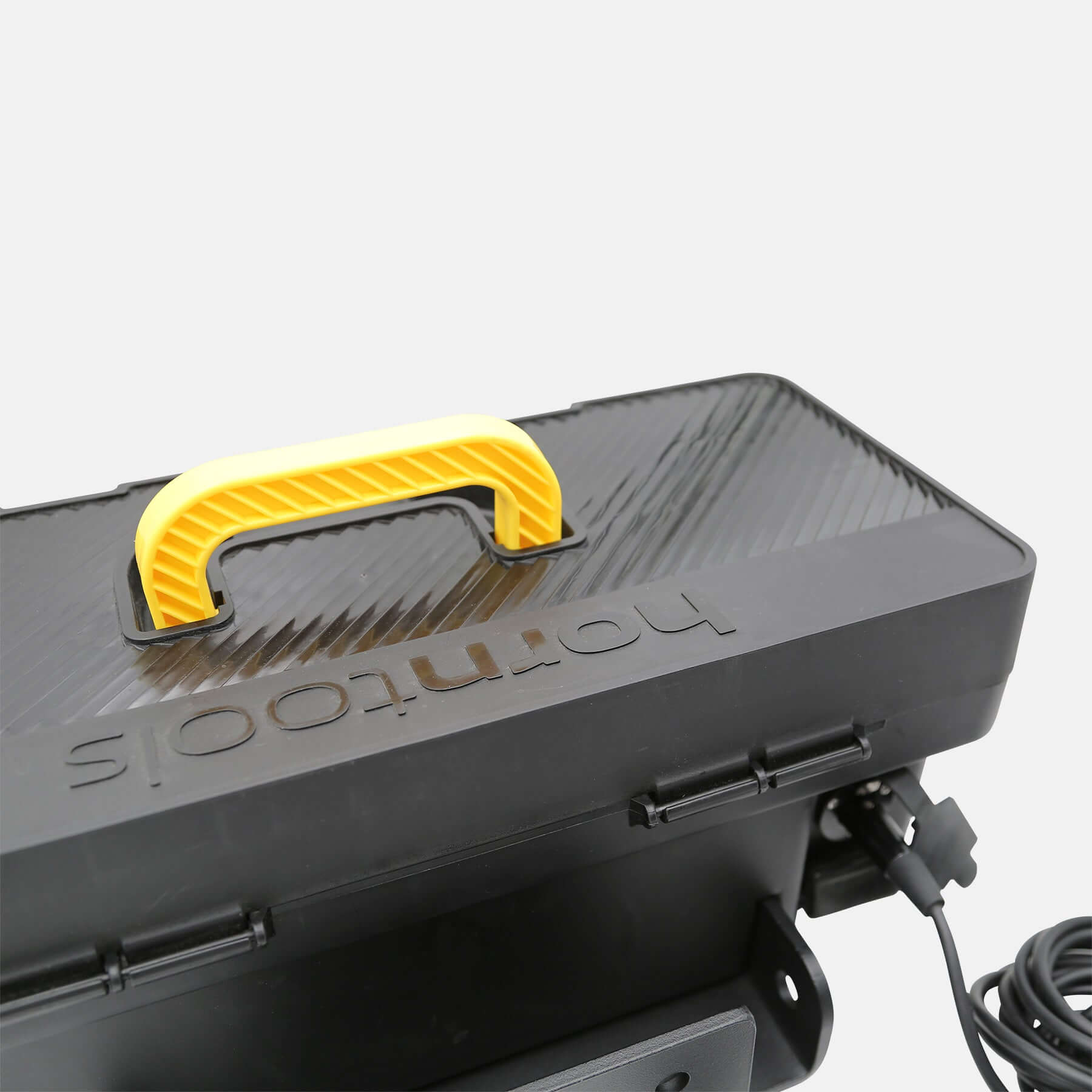

The winch box is also ideal as a portable winch for trailers or boat trailers. The accessories stored in the robust box are protected from all weather conditions.

Mobile hunting winch

The Winch Box is also ideal for hunters as a mobile winch. The compact box fits in any boot – whether you drive a Dacia Duster, Suzuki Jimny or Land Rover Defender. With the Winch Box, game can be pulled to or into the vehicle.

Pull equipment or boxes onto the loading area

Want to pull equipment, boxes or tools onto your loading area? No problem with the Winch Box, which has a pulling force of 1.8 tonnes.

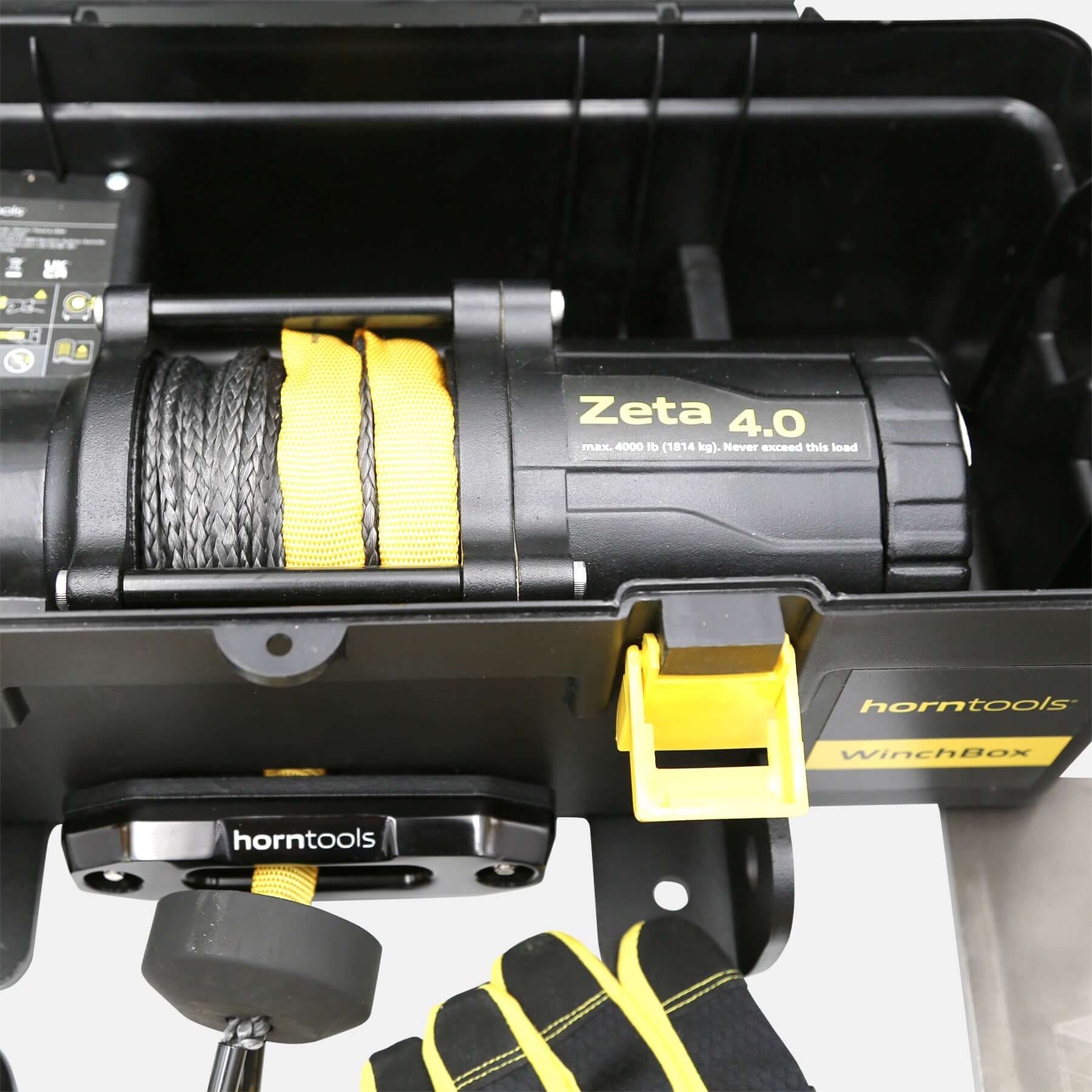

Technical details (Zeta winch):

• Traction force: 1.8 tons
• Gear ratio: 166:1
• Motor: 12V (Input: 2.4kW / Output: 1kW)
• Drum size: 50.4 mm x 82 mm
• Winch rope (diameter x length): 5 mm x 16 m
• Material of winch rope: plastic
• Cable (cross-section x length): 12 mm² x 3 m
• Total weight: 19 kg

Pulling speed (Zeta winch):

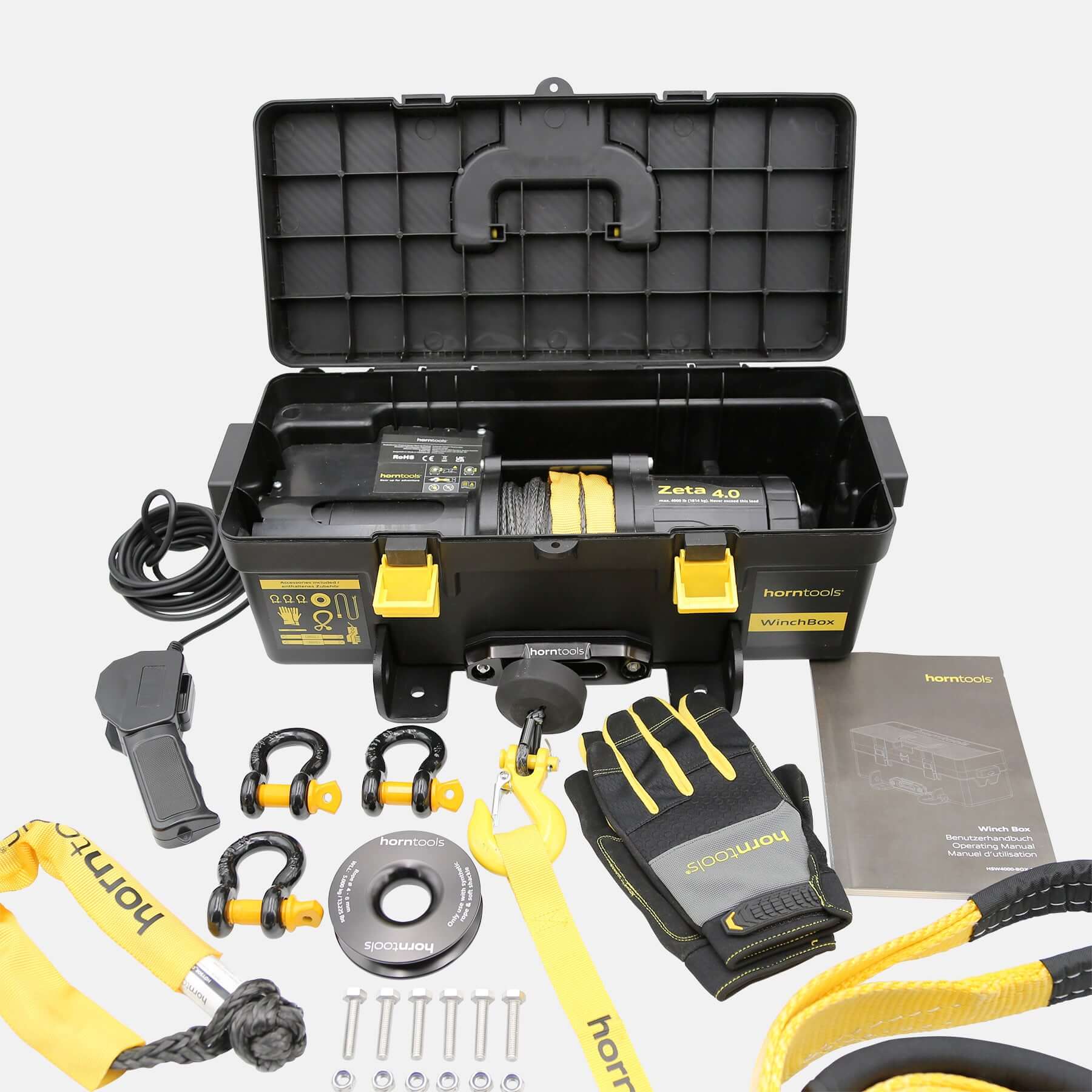

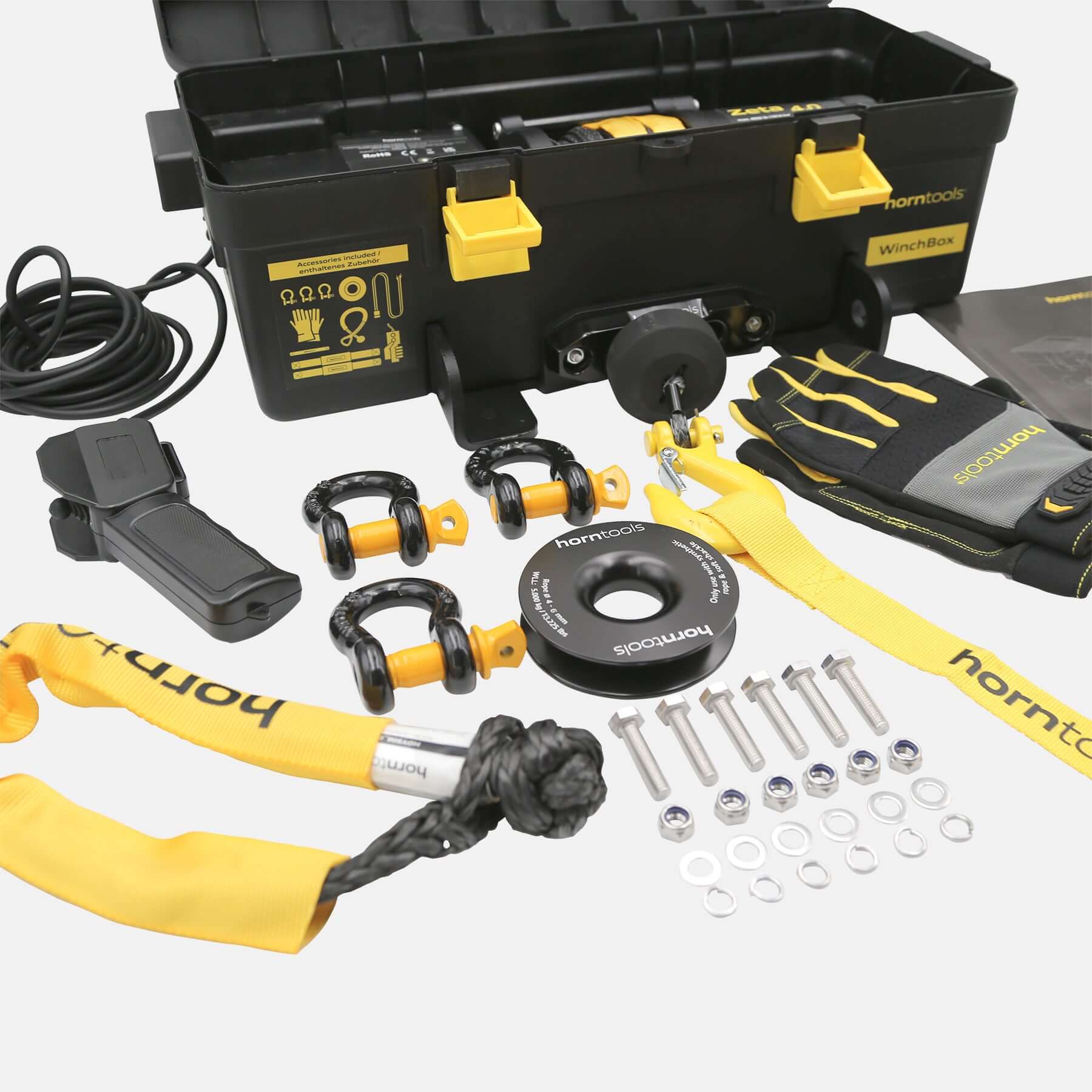

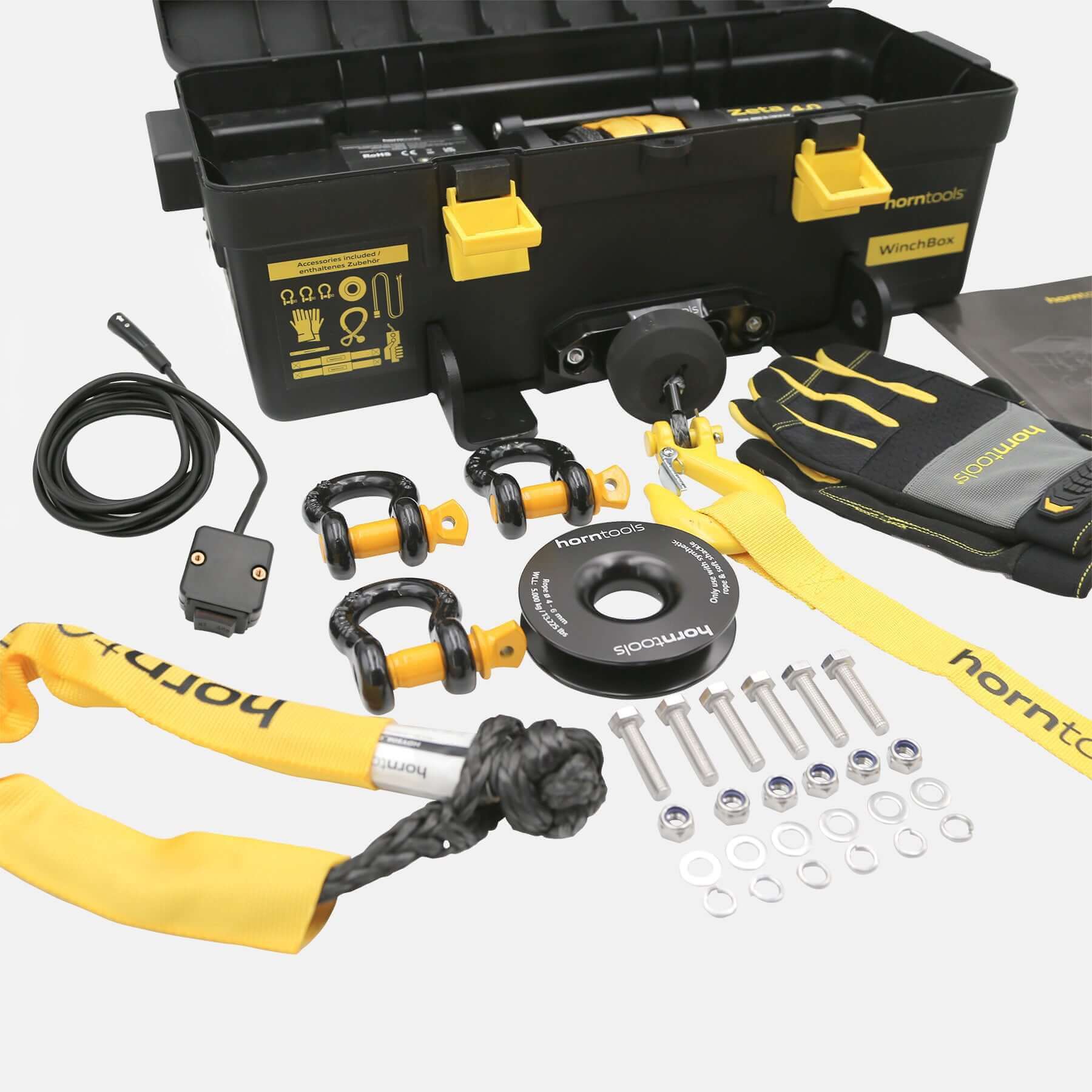

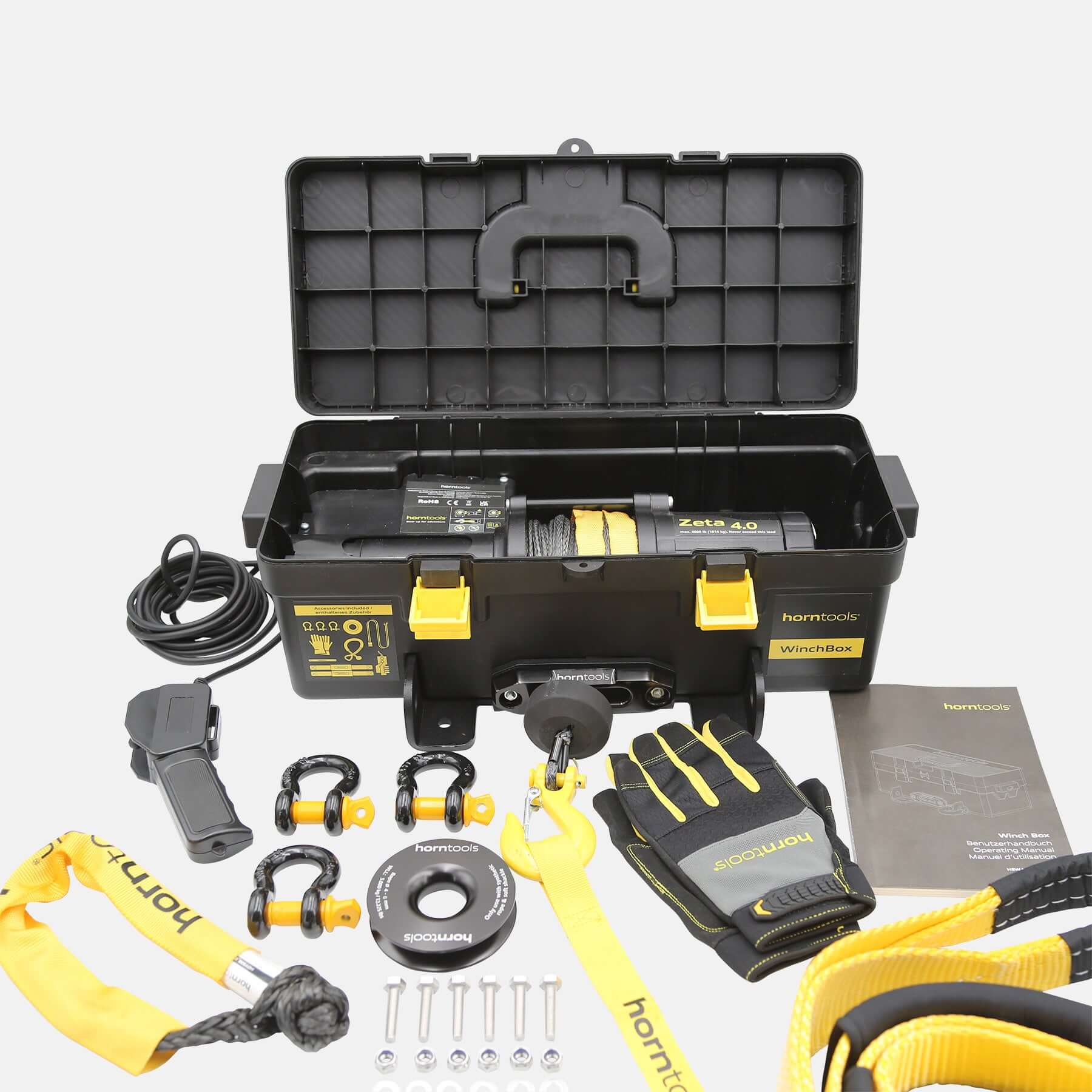

Scope of delivery:

• 1 x cable winch Zeta (1.8 T)
• 1 x box (L: 50.6 cm / W: 30.4 cm / H: 18.62 cm)

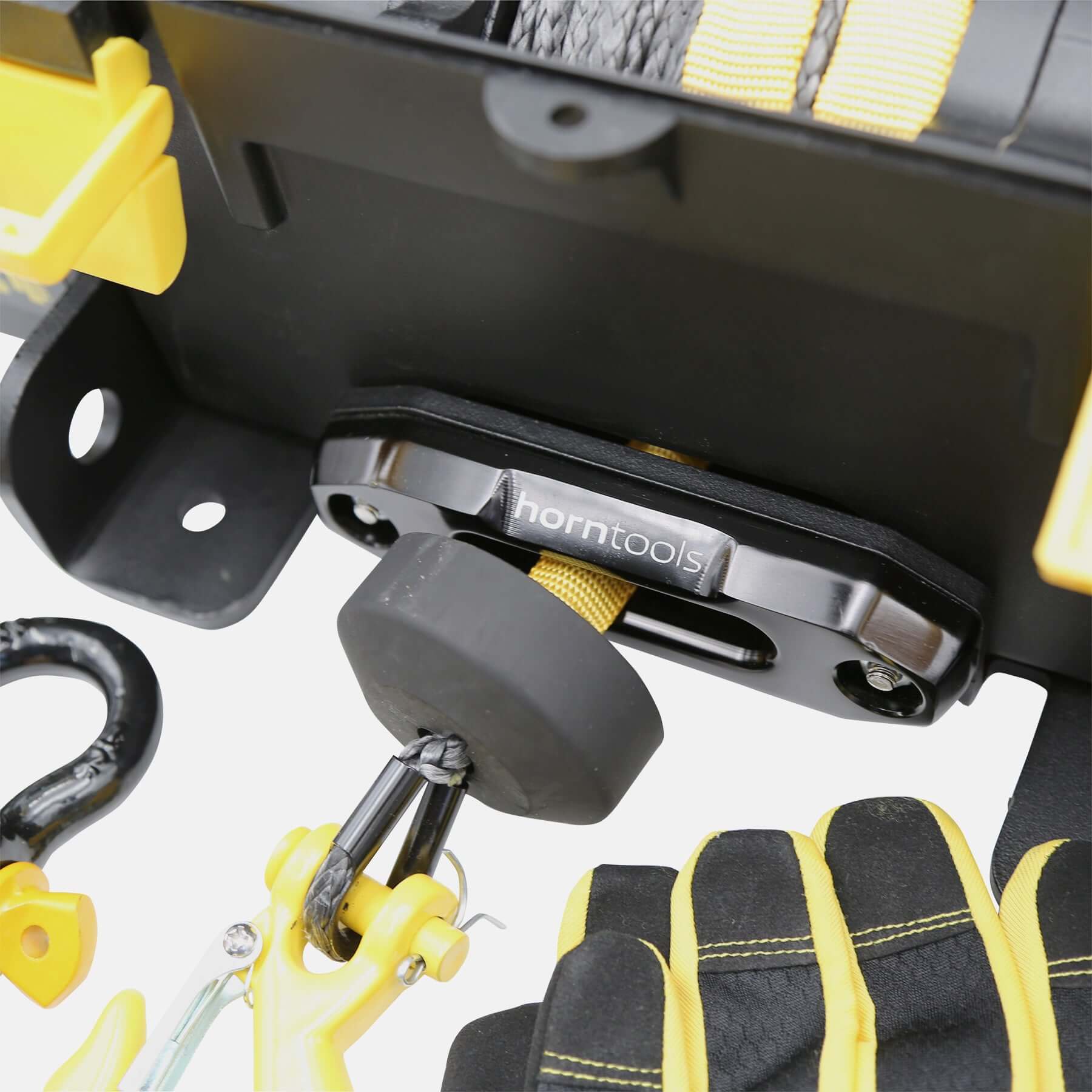

• 1 x aluminum cable window
• 1 x 5 mm plastic rope (16 m length)
• 1 x mounting plate
• 1 x pulley (WLL 5 tons)
• 1 x soft shackle (WLL 4 tons)

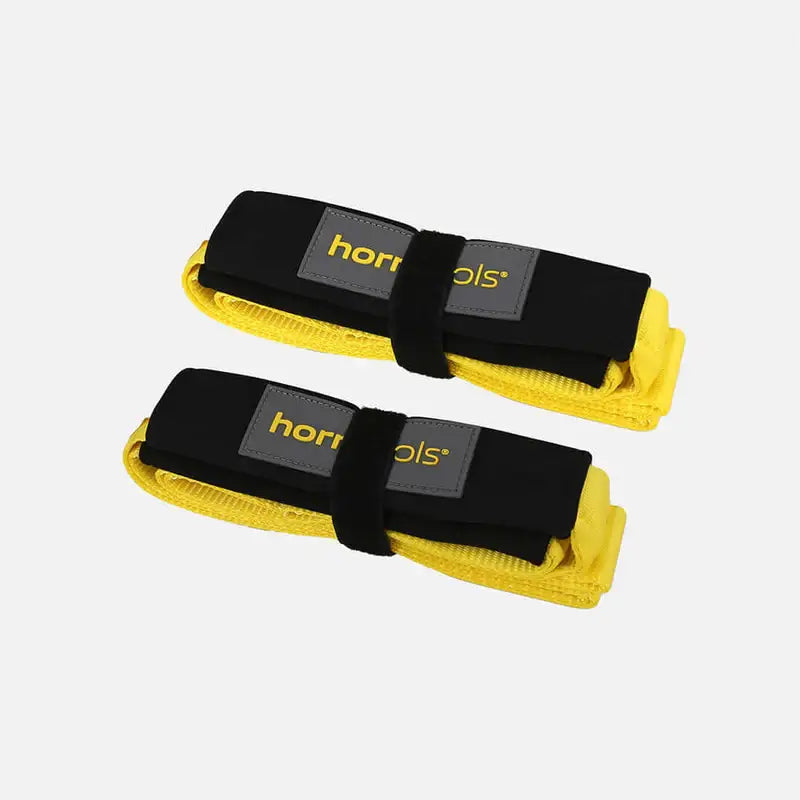

• 2 x tree straps 2.5 m (WLL 2 tons)
• 3 x bow shackles (WLL 2 tons)

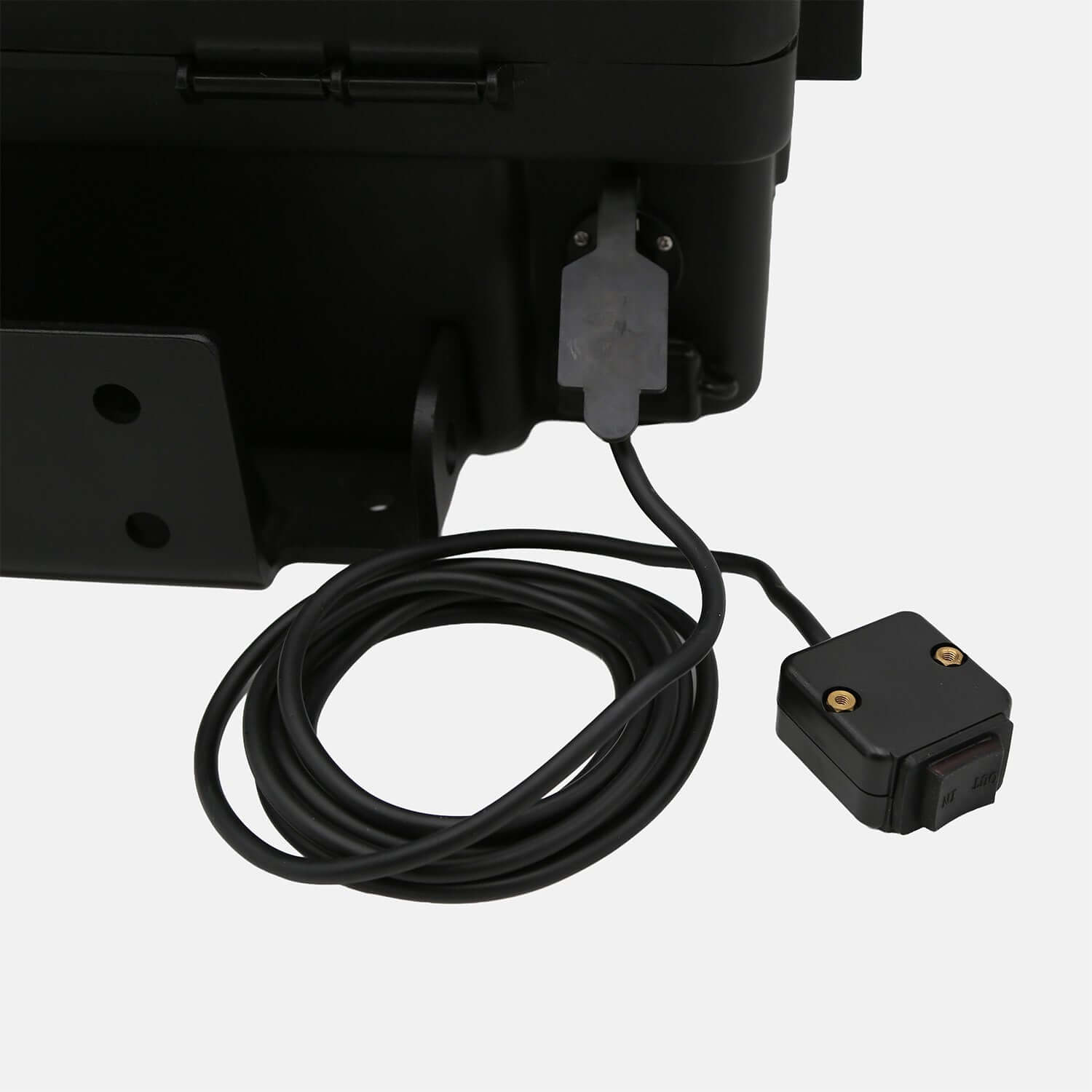

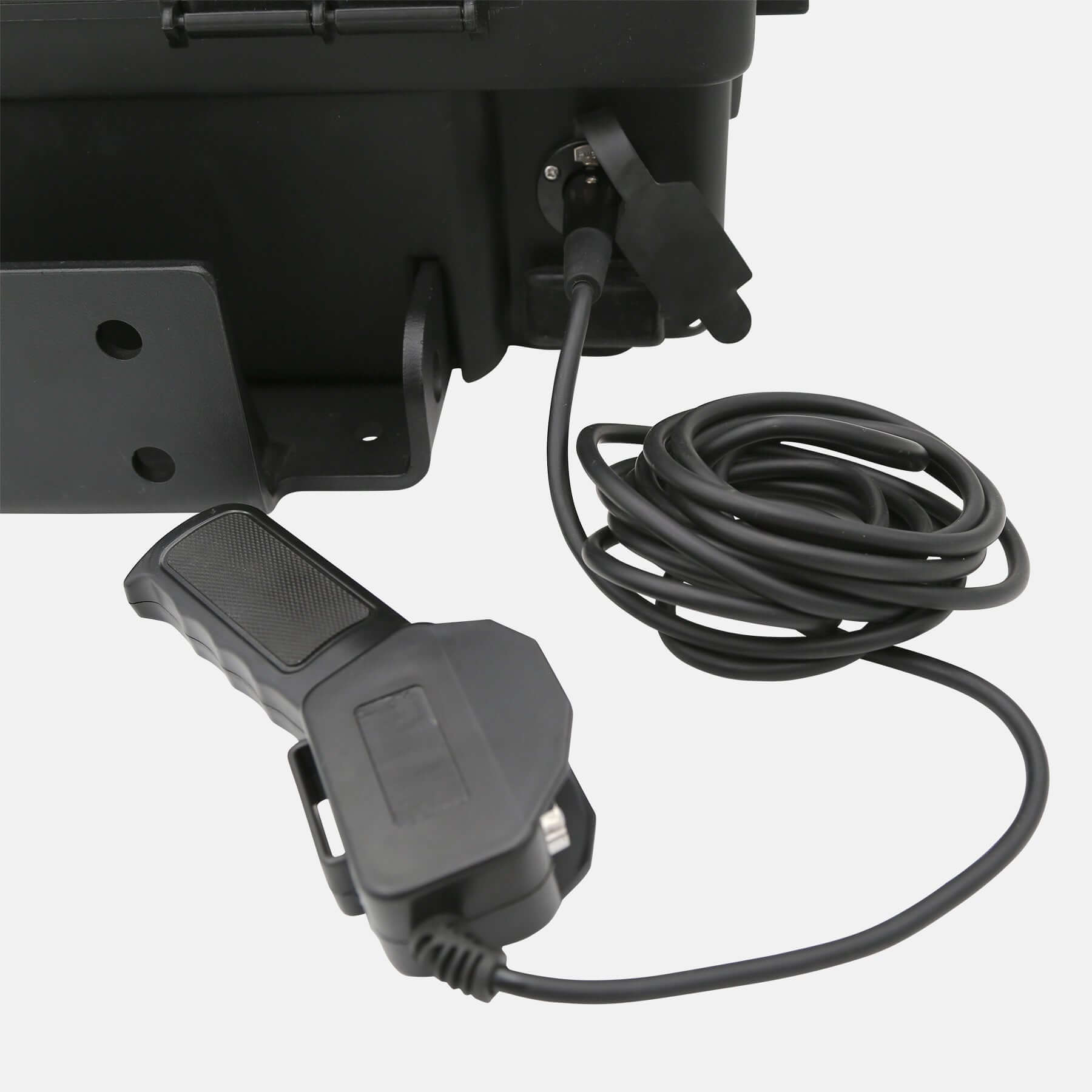

• 1 x wired remote control

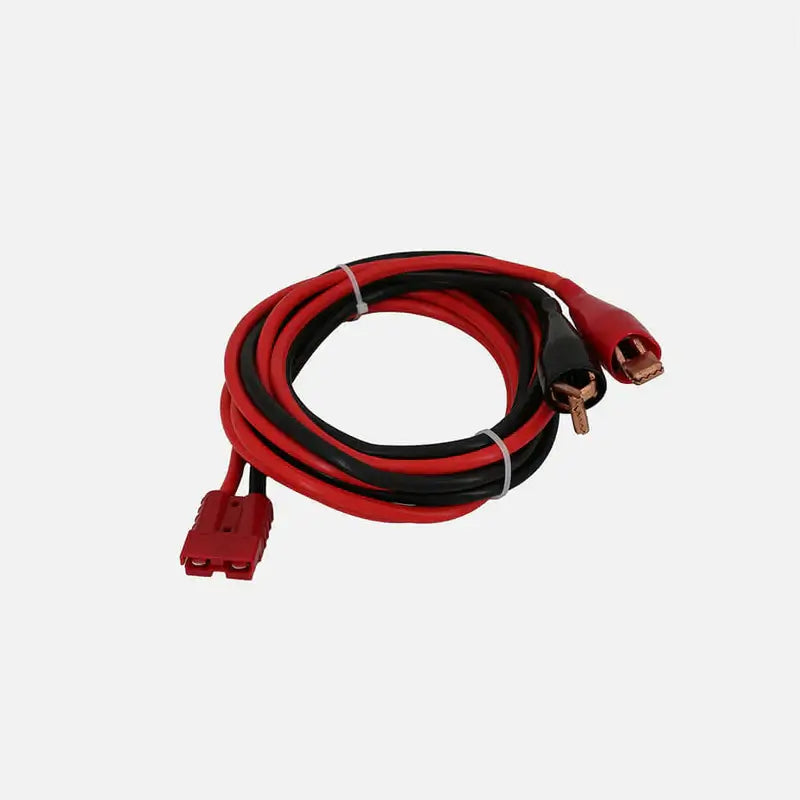

• 1 x cable
• 1 x Gloves

Note:

Please use only the matching radio remote control for the Winch Box. Other horntools radio remote controls are not compatible with the Winch Box.
