Lada Niva Taiga winch system

Lada Niva Taiga winch system including 4.3 to Alpha 9.5 with TÜV and synthetic rope

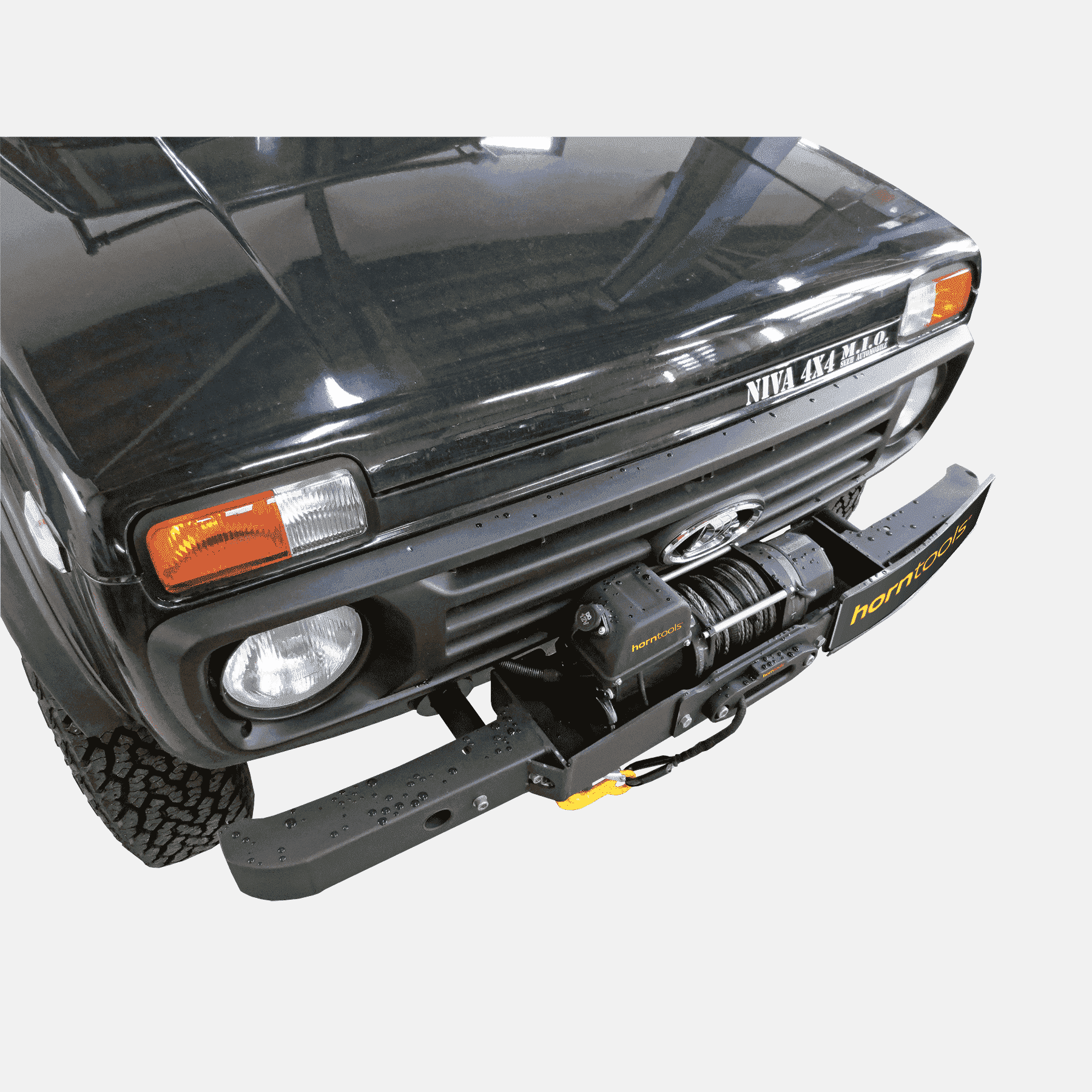

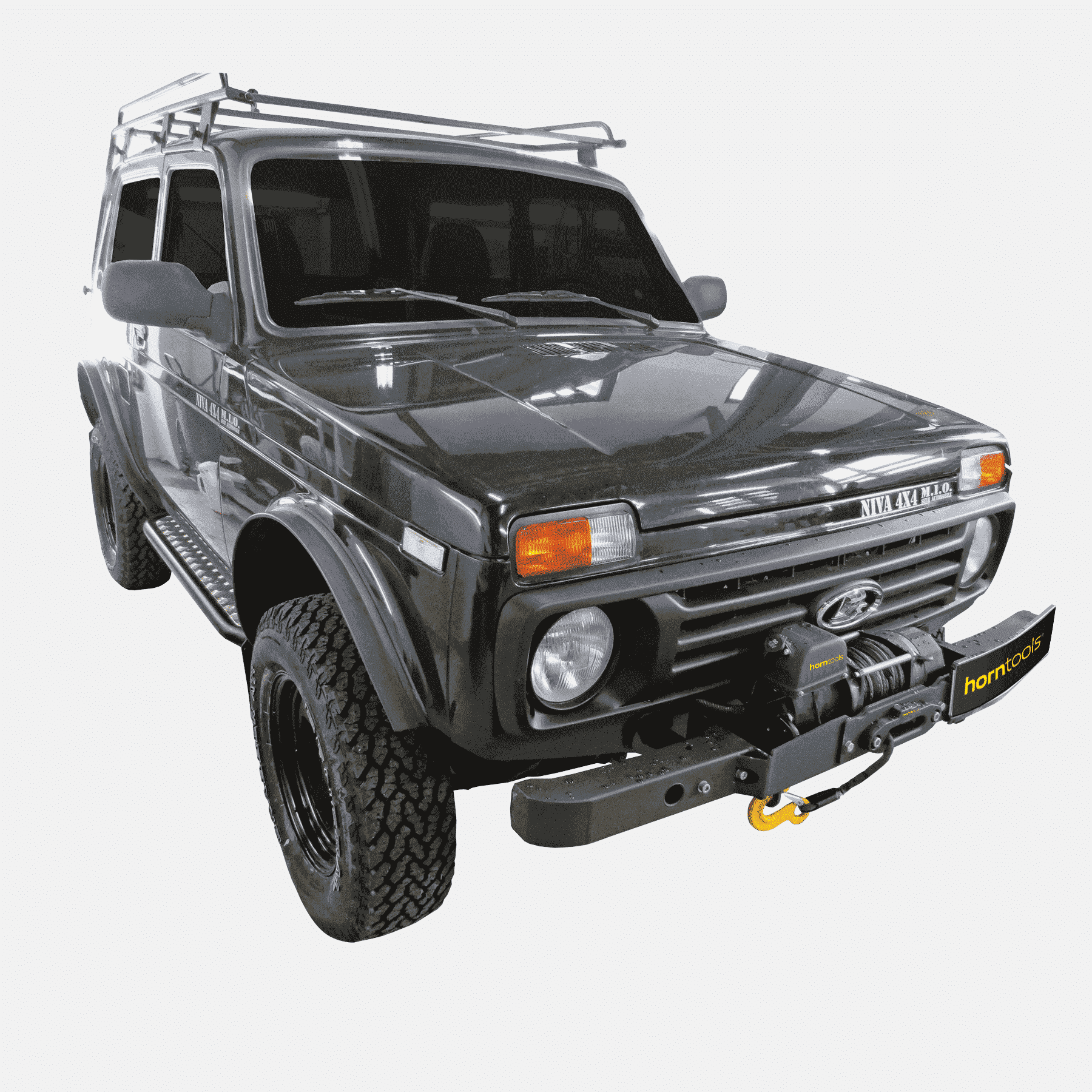

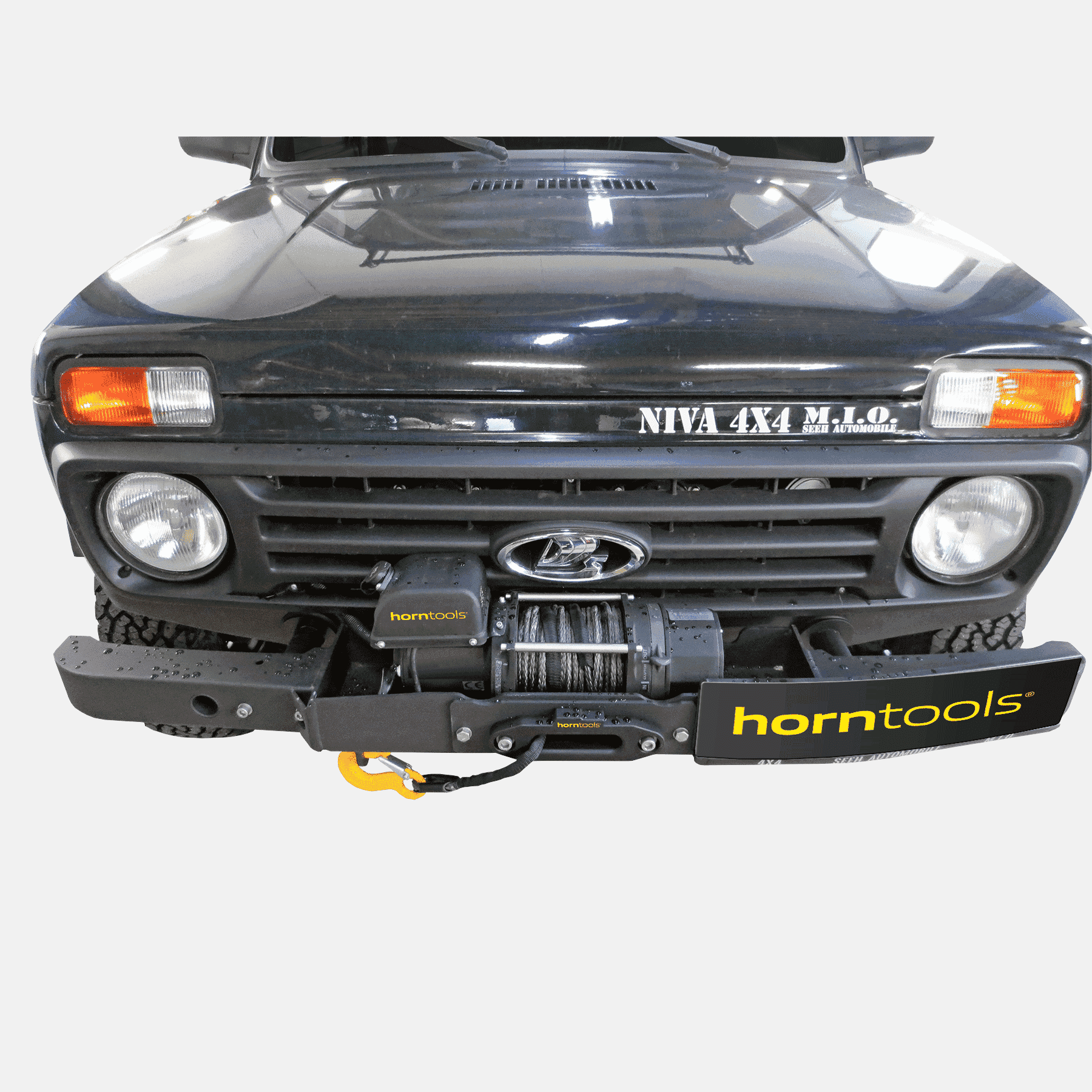

Our winch system including bumper from horntools fits the original stopping points on the Lada. To ensure that everything runs smoothly during a rescue operation or when pulling equipment, the compact Alpha 9.5 winch has a pulling force of 4.3 tons and a 10mm thick and 30m long synthetic rope. The powder-coated bumper has shackle holders included and mounting points for a Farm Jack jack.

Since the original alternator and the battery of the Lada are very small, we recommend an upgrade at least for the battery. You can get information about the options from your Lada dealer.
The system does not fit the Lada Bronto with syntehtic bumper. The aluminum version is supported. On new Lada models, the radiator grille must also be cut out.

Characteristics:

• Motor IP67 sealed by groove with sealing ring
• Freewheel lever
• Stainless steel crossbars
• Reinforced rope drum
• Internal drum brake with 3 brake shoes
• Powder-coated aluminum die-cast housing motor/gearbox
• Removable control unit (so that the control can be installed anywhere)
• Reinforced, powder-coated contractor housing (control box) made of deep-drawn sheet metal

transmission

• 3-stage planetary gear
• Max. pulling force: 3600 kg
• Max. pulling speed: 5.5 m/min*
• Engine power: 5.1 HP
• Engine type: Series Wound**
• Gear ratio: 166:1
• Max. power consumption: 320 amps
• Voltage: 12V
• Rope (∅ x length): 10 mm x 30 m
• Drum (∅ x length): 63 x 227 mm
• Overall size (LxWxH): 570 x 180 x 243 mm
• Weight of winch: 29 kg
• Weight of installation set: 21 kg
• Total weight: 50 kg

Validity of the report:

Scope of delivery:

• Installation set
• Winch with synthetic rope
• Aluminum cable window
• Fastening screws
• Synthetic rope with soft thimble
• Cable remote control
• Radio remote control
• TÜV parts report - You can find the valid vehicle types in the “Technical data” tab.
• Operation manual

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting!
The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

Guarantee:

We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer.
This winch can produce a higher level of noise.
